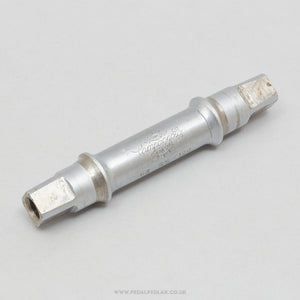

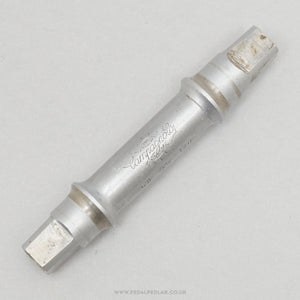

Campagnolo Nuovo Record (744) 68-SS-120 Vintage 112 mm Bottom Bracket Axle

✓ Original part - in production from the 1960s to the 1970s
✓ Suitable for historic cycling events such as L'Eroica
✓ Professionally checked & cleaned
✓ Worldwide shipping

Campagnolo Nuovo Record bottom bracket axle (or BB spindle if you prefer), hailing from Italy and in production from the 1960s to the 1970s. This version is for the chainsets produced before the CPSC changes that were made around 1978 - these require a slightly narrower axle than the 'post-CPSC' ones. Made from steel and weighing in at 140 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike.

If you're taking part in L'Eroica or any other vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong axle!

The axle has been thoroughly checked, cleaned and graded as good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.

OVERVIEW


Race Condition - Good
Model ID - 744
Production Era - 1960s & 1970s
Country - Italian
Material - Steel
Weight - 140 g
Stock Code - U-BB-AS4V

TECHNICAL INFO


Axle Type - Square Taper
Axle Markings - 68-SS-120
Axle Length (D) - 112 mm
Axle Centre (B) - 54.5 mm
Axle Drive Side (C) - 30.5 mm
Axle Non-Drive Side (A) - 27 mm
Shell Width - 68 mm

NB: Check the help section to see how we take these measurements.

SHIPPING, TAXES & RETURNS

We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.

We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.

We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.

HELP SECTION
We've provided reference below to illustrate how we take the measurements.

Axle Type - for square tapers, the ISO introduced a standard for European makers in the early 90s, JIS then did the same in Asia. Before then it was not so simple, and although there is a degree of interchangeability, the best way to make sure you have the right axle is to stick to the same brand from the same era, ideally the proprietary model.

Axle Length (D) - your crankset dictates the axle length you need and the recommendation should be used to avoid issues with chainline. If you're replacing an axle that works perfectly then this can be matched, otherwise you'll need to check the manufacturers spec, a good resource for older bikes is Velobase.

Centre (B) - measured from the outside of the 'shoulders' of the bearing races, as seen in the diagram.

Drive Side (C) - the right side (with any logos etc on the axle facing you), your right crank and chainrings will mount to this side.

Non-Drive Side (A) - the left side, where the left crank arm will be mounted.

Shell Width - the width of the bottom bracket shell the axle was designed to fit, measured at its widest point.
