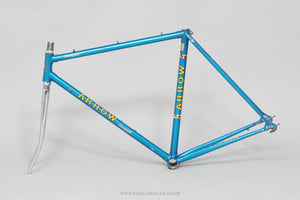

52cm Arrow Super Arrow Vintage Road Bike Frame
$426.00 $474.00
✓ Original vintage frame - built in the 1980s
✓ Lightweight for the era - just 2.5 kg
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping

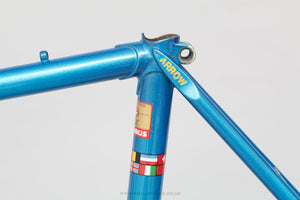

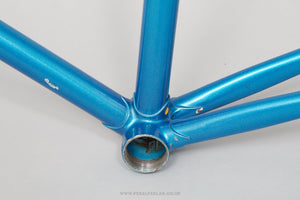

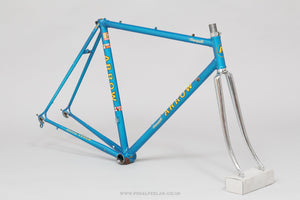

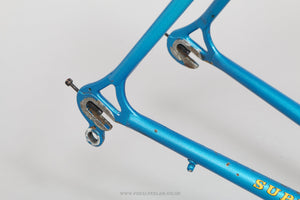

Though we are not too sure who Arrow are, this pretty blue Arrow branded race frame is very nice indeed. The low weight is achieved by using top of the range Columbus SLX tubing, slender lugs and a racy Cinelli 'spoiler' bottom bracket shell. This compact little Italian road bike would look bellissima with a full Campagnolo build.
If you're taking part in L'Eroica or a similar vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW

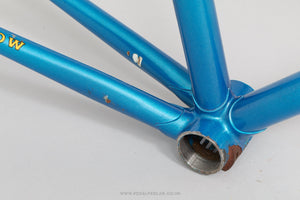

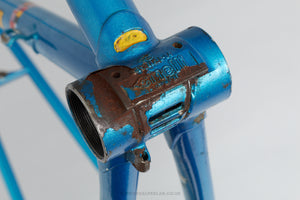

Condition Notes - Some surface rust under bottom bracket shell where exposed through paint loss.
Era - 1980s
Country - Unknown
Frame Material - Steel

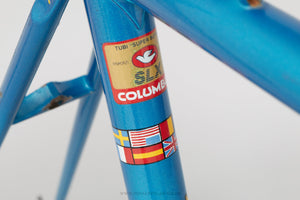

Tubing - Columbus SLX
Weight - 2.54 kg
Stock Code - U-F-R42V
SIZING
Size Guide* - Small/Medium (Approx 30 1/2" Inside Leg)
Seat Tube (ctc) - 52 cm
Top Tube (ctc) - 54 cm
Head Tube - 111 mm
Chainstay Length - 41 cm
Wheelbase - 98 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 126 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.0 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 38 / 40 mm
Bottom Bracket Thread - Italian Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 44 mm
Fork Crown Race - 26.4 mm (ISO)

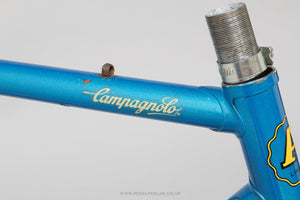

Shifter Fittings - Downtube Braze-On
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
