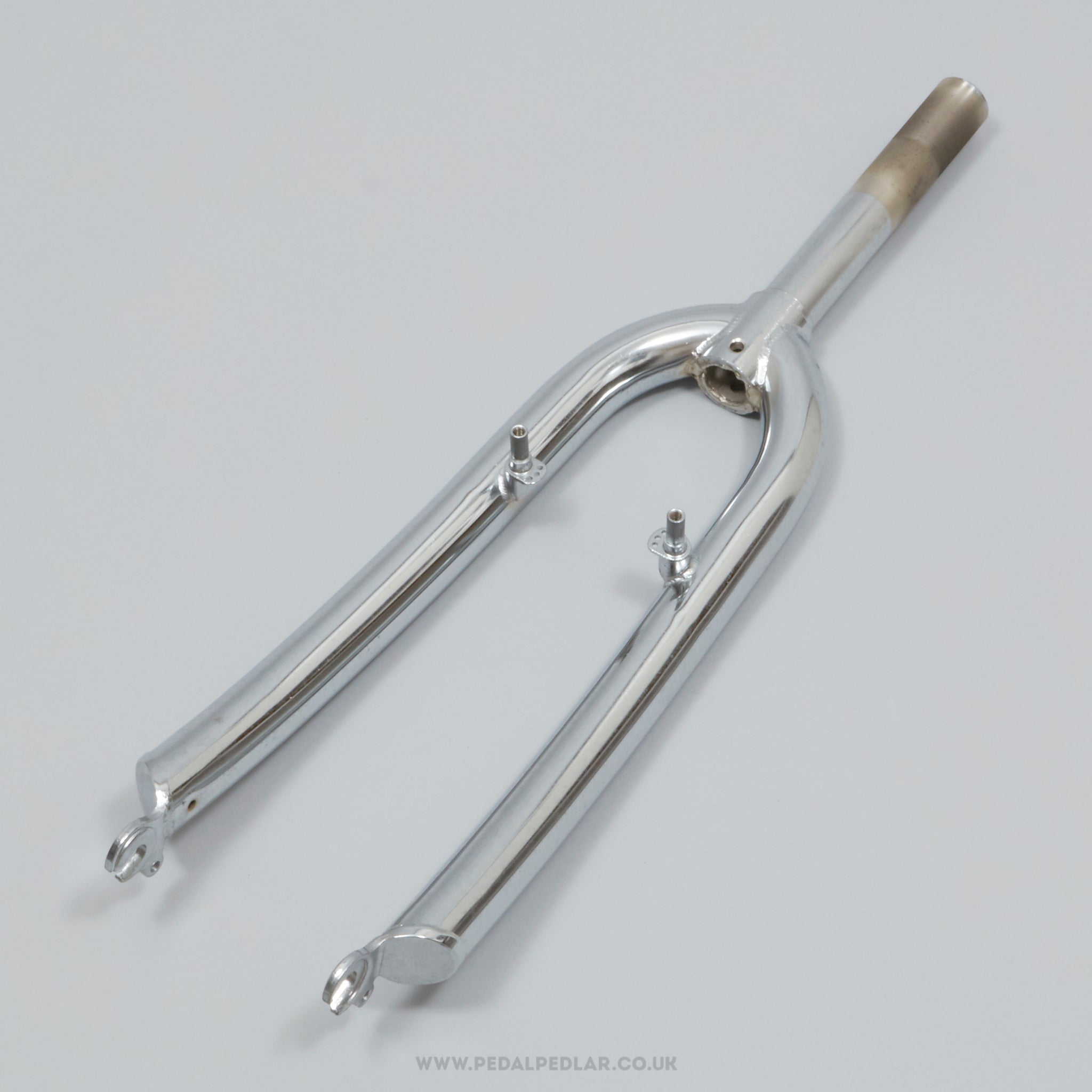

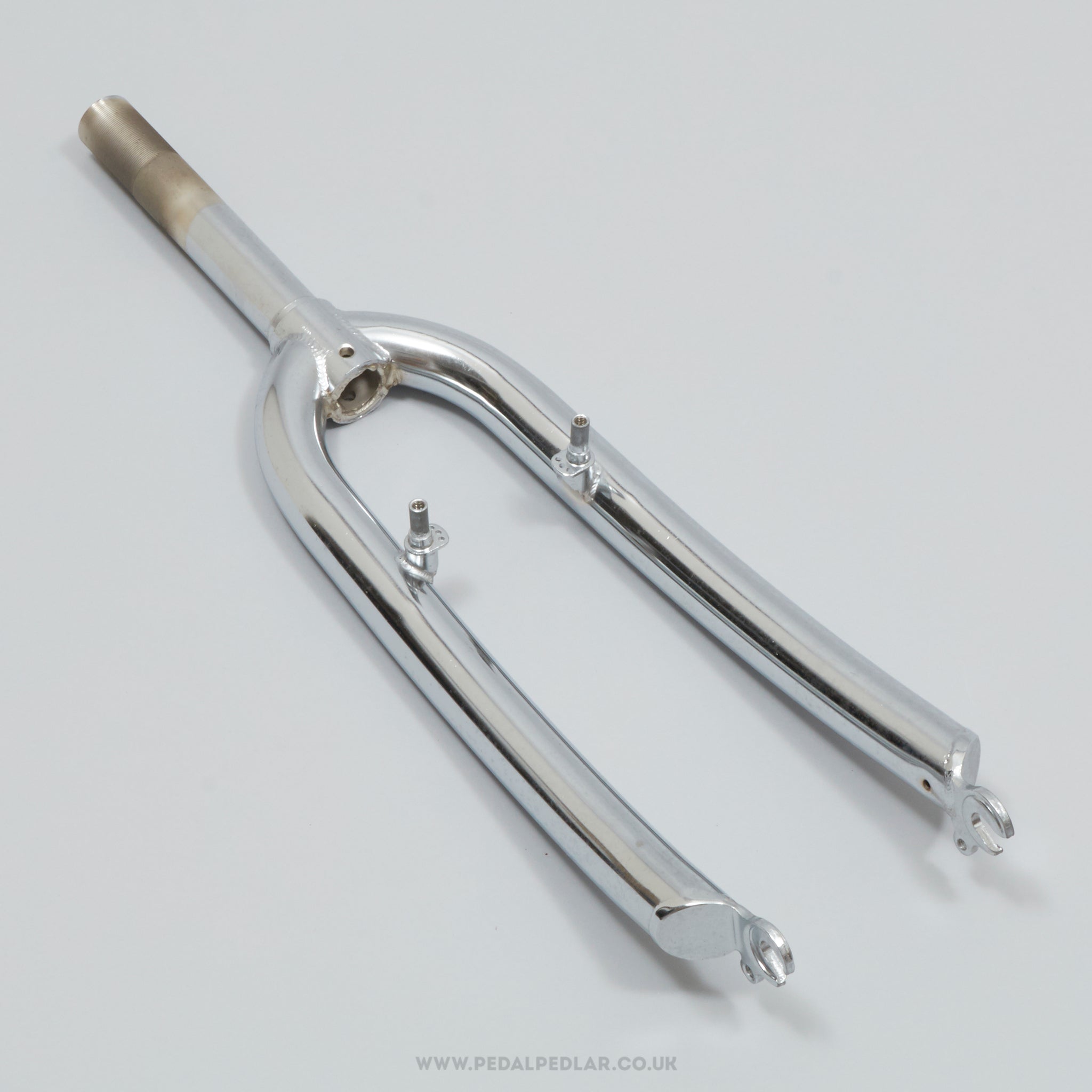

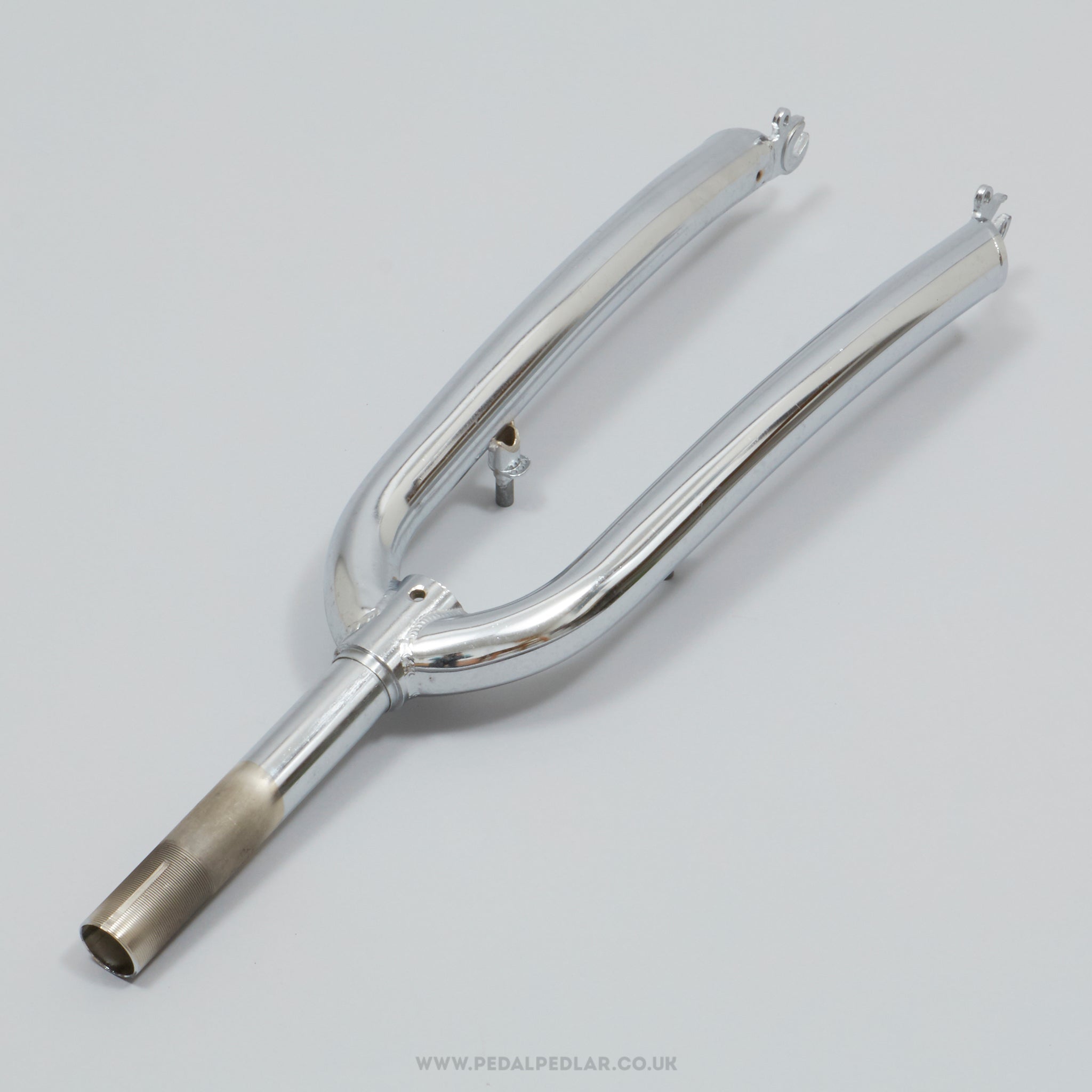

Classic Chrome MTB NOS 26" 1 1/8" Threaded Bike Forks
£45.00
✓ Original bicycle forks - produced in the 1990s
✓ New old stock! Still unused after all these years
✓ Worldwide shipping
Unbranded classic forks, most likely in production during the 1990s (yet still new & unused after all this time!). Made from steel and weighing in at 1272 grams. A fine choice for keeping your classic bike authentic, but also great for any other compatible bike.
OVERVIEW
Production Era - 1990s
Material - Steel
Weight - 1272 g
Stock Code - D-FK3C
*New old stock items may have marks from storage over the years, and as we often have multiples they can vary from piece to piece, but they are always genuine new & unused items.
TECHNICAL INFO
Wheel Size - 26"

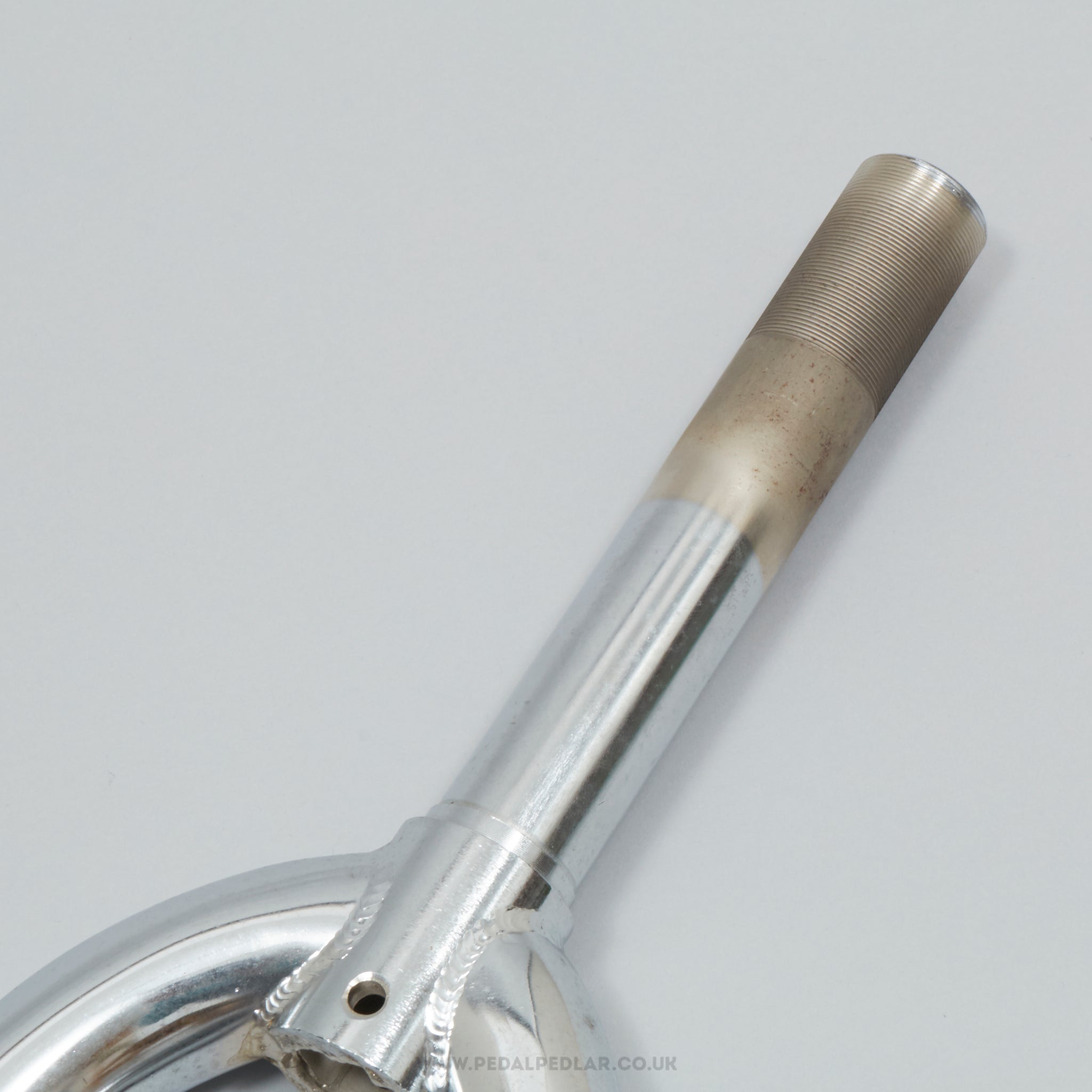

Steerer Type - 1 1/8" Threaded
Quill Stem Size - 25.4 mm (Standard 1 1/8")

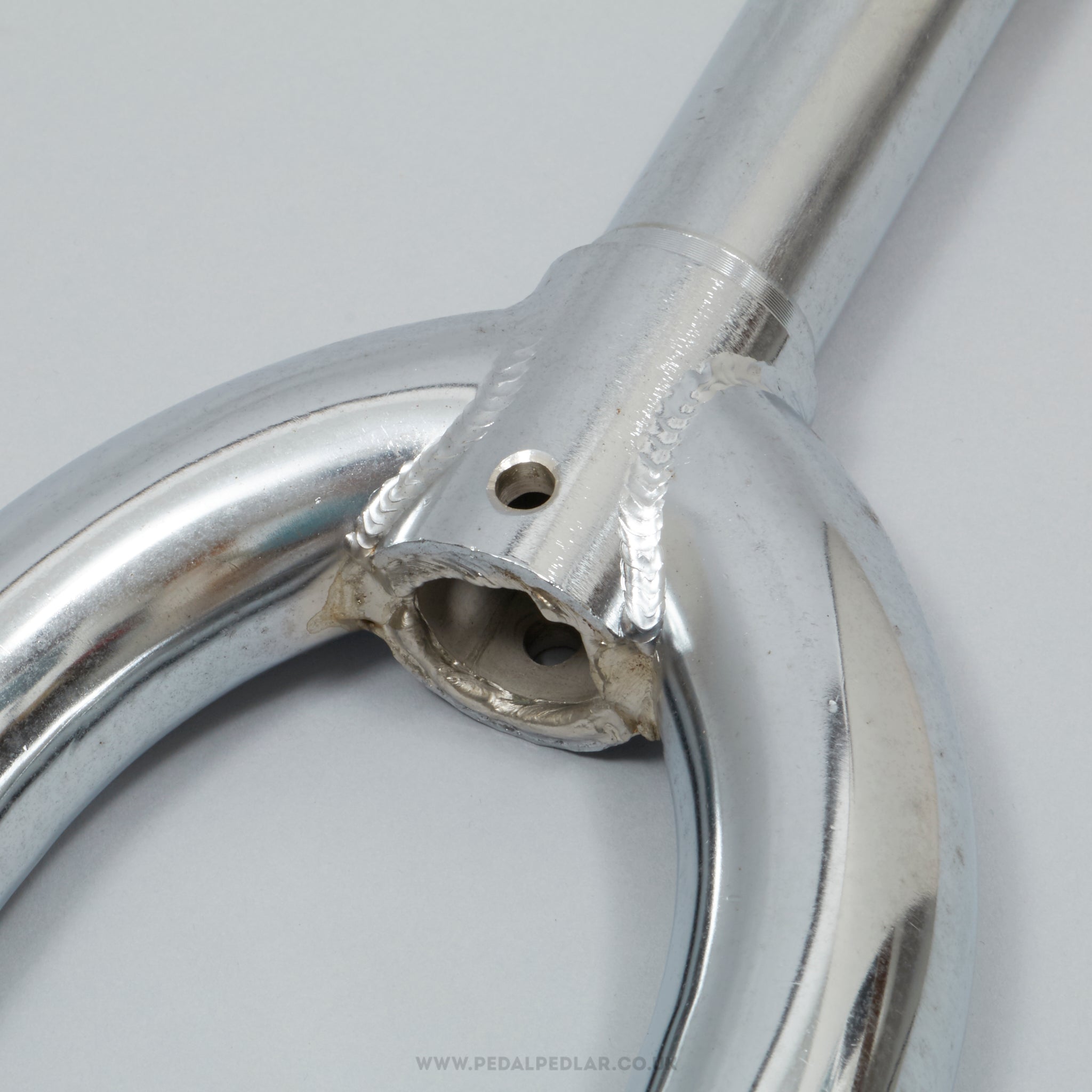

Fork Crown Race - 30.0 mm
Brake Fixing - Cantilever / V-Brake
Steerer Length - 162 mm
Threaded Section - 47 mm
Headset Thread - Standard ISO (24 TPI - British/Italian)

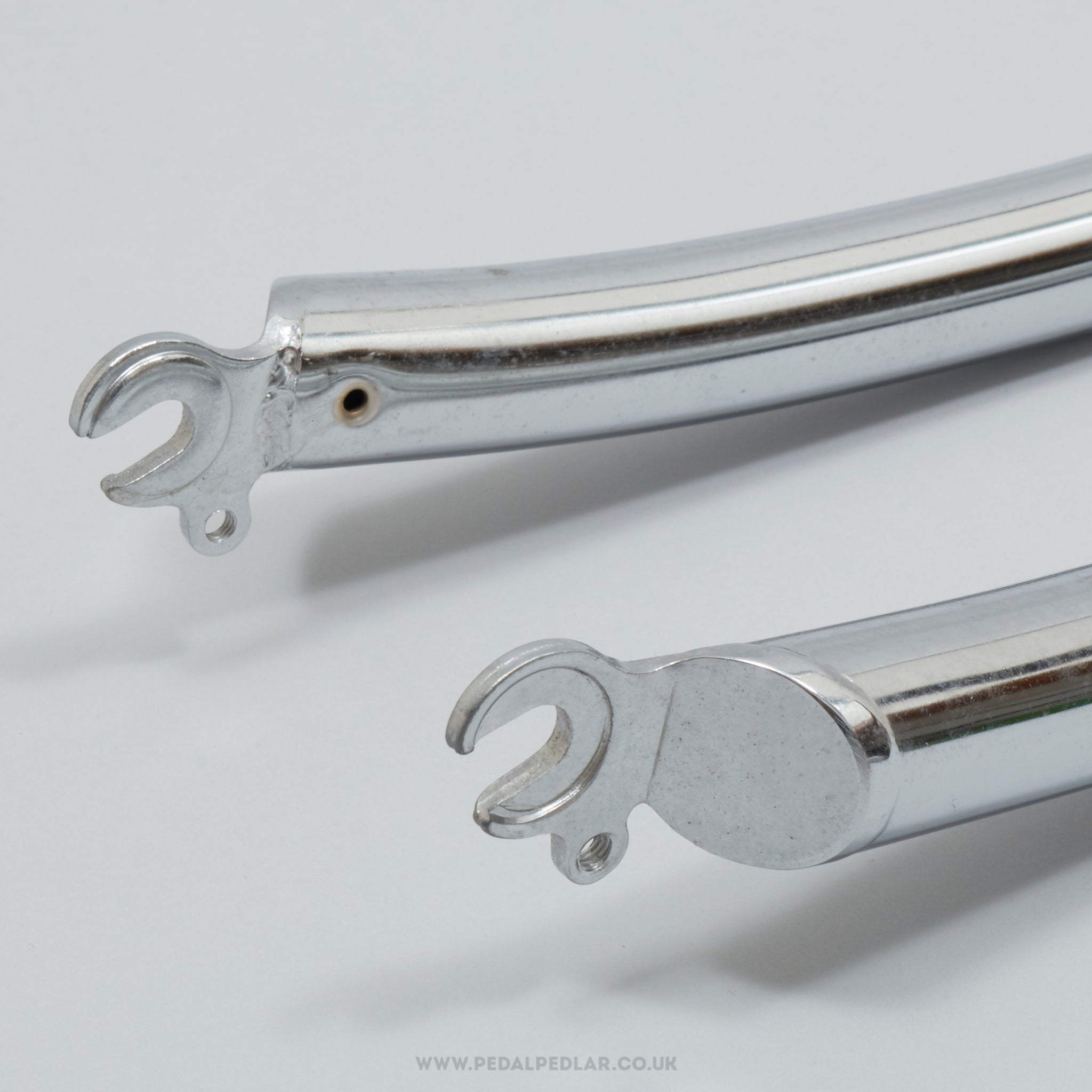

Dropout Spacing (Inside) - 100 mm
Axle to Crown (Top) - 400 mm
Axle to Crown (Bottom) - 355 mm
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Steerer Type - this is the outside diameter and it must match your headset & stem. Threaded steerers require threaded headsets & quill stems, whereas threadless ones need a threadless headset & ahead stem.
Quill Stem Size - only for threaded forks. The inside diameter of the steerer must match the outside diameter of the stem shaft. 22.2 mm was standard everywhere except France where it was 22.0 mm. By the 1990s it was all standardised and the diameters increased.
Fork Crown Race - the outside diameter at the reinforced base of the steerer, this is where the headset crown race is seated so these need to match in size.
Brake Drop - for caliper brakes only, this is measured from the centre of the brake mounting hole to the centre of the wheel rim in a straight line, using a wheel of the relevant size.
Brake Fixing - calipers either require a centre hole of around 8 mm diameter if they’re fixed using an allen key nut, or a smaller hole around 6 mm for a hex nut fixing. Cantilevers and V-brakes require post mounts that sit below the wheel’s rim, whereas U-brakes and centre-pull specific mounts sit above the rim.
Steerer Length - for threaded steerers, your frame’s head tube length + the stack height of your headset is the minimum length you require (minus a few mm as you need a small gap at the top). For threadless, add the stem stack height to that measurement. Any excess can either be cut off or spacers can be added.
Headset Thread - if the steerer is threaded it's generally recommended to match to the headset thread, although technically you can mix and match (unless you have French or the obscure old Raleigh threads, in which case you need to stick to that type).
Axle to Crown - measured from the centre of the axle point straight up vertically to the fork crown, both top and bottom are provided.
