✓ Original part - produced in the 1960s
✓ Suitable for historic cycling events such as L'Eroica
✓ Professionally checked & cleaned
✓ Worldwide shipping

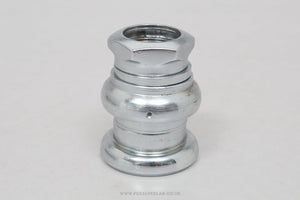

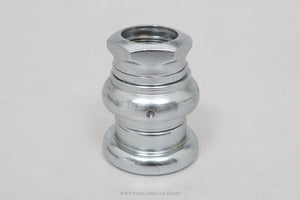

T.D.C Continental Italia headset, hailing from Great Britain and in production during the 1960s. Made from steel and weighing in at 140 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or a similar vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong headset!

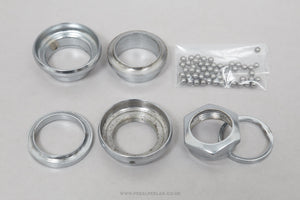

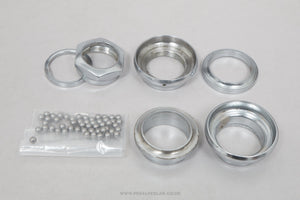

The headset's been carefully cleaned, thoroughly checked by one of our mechanics and graded as very good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.
OVERVIEWCosmetic Condition -
Very GoodBearing / Race Condition -
GoodProduction Era -
140 gStock Code -
Headset Type -
1" Threaded JIS (24 TPI)Cup Size (OD) -
30.0 mm Crown Race (ID) -
27.0 mmStack Height -
▼SHIPPING, TAXES & RETURNS
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
Headset Type - the 1" size relates to the outside diameter of your fork's steerer column which should measure 25.4 mm, if it's 25.0 mm your forks should be French threaded. Although it's generally recommended to match threaded parts exactly, with headsets you can technically mix and match, unless you have French or the obscure old Raleigh threads, in which case you need to stick to that type. If you're replacing an old headset the thread may be stamped on there. Oversized 1 1/8" & 1 1/4" sizes are easily identifiable due to their size and the threads are all standard.
Cup Size (OD) - the outside diameter of the cups, this must match the inside diameter of your frame's headtube closely for a good fit. For 1" headsets this should be around 30.2 mm unless you require a JIS headset which will be 30.0 mm.
Crown Race (ID) - the inside diameter of the crown race where it sits on the fork steerer, this needs to be close to the outside diameter of your fork steerer at the base to ensure a proper fit.
Stack Height - the overall height of the headset. To check the minimum stack height you require, measure the length of your frame’s head tube & subtract this from the length of the fork steerer column. You can always add spacers if you have a little too much steerer tube but you can't fit a headset with a greater stack height than the space you have available.
For further help with 1" threaded headsets head to our journal.
