41.5cm Raleigh Dyna-Tech MT4 Titanium RSP NOS c.1993 Classic British Mountain Bike Frame
$903.00 $1,290.00
✓ Original classic frame - built in the 1990s
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Raleigh are one of the oldest and most well-known bike companies in the world, thanks to their huge success with early safety bicycles; lightweight Roadsters; cult classics like the RSW and Chopper, and some big professional bike race wins in the 70s and 80s. Beginning in Nottingham in the late 1880s, the company expanded rapidly and by 1913 it was the largest manufacturer of bicycles in the world, though production slowed down through the two World Wars, by the late 1940s the lightweight Roadster was selling phenomonally well in the US and their high profile continued in to the 1970s. Raleigh bought out several smaller brands over the years adding Carlton, Humber and BSA to their portfolio, they were themselves then bought by competitor Tube Investments creating the massive Ti-Raleigh business in 1960. Raleigh's racing success arguably reached a peak in 1980 when Joop Zoetemelk won the Tour de France riding an iconic red Team Ti-Raleigh, they continued to sponsor road teams and also had some success racing MTBs in the 90s with Dave Baker.
The 1990s incarnation of Raleigh's Special Products Division (known as RSP for short), was a cutting edge bike building facility that specialized in mixed material bonded bikes labelled Dyna-Tech. The bonding process allowed RSP to mix and match titanium, lightweight steel and Metal Matrix in various combinations to offer the best qualities of each material where it was needed, and still keep the price down. The bonded Dyna-Tech frames turned out to be extremely versatile and were ridden to victory in MTB, cyclocross, track and road races across the World. RSP also offered their by now legendary hand-built steel touring and randonneur frames, all from their Nottingham factory.
The 1993 Dyna-Tech MT4 was a frame only option from Raleigh's Special Products Division. Comprising titanium main tubes, chainstays and dropouts, with Mn-Mo (Manganese-Molybdenum) seat stays bonded into specialy designed lugs. The frame was designed for a short travel suspension fork or suspension corrected rigid fork, as expected with all that titanium it is super light too. The metallic sparkle paint work is exceptional, this bike having once been partially built but never ridden, it was someone's highly specced build at one time but never made it out of the showroom.
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Condition Notes - Weight includes installed NOS Shimano UN71 BB and titanium bottle cage bolts and seat bolt.
Era - 1990s
Country - British
Frame Material - Titanium/Steel
Tubing - 2145 (Titanium Tubes)
Weight - 1.895 kg
Stock Code - U-F-M1C
SIZING
Size Guide* - N/A
Seat Tube (ctc) - 41.5 cm
Top Tube (ctc) - 54 cm
Head Tube - 105 mm
Chainstay Length - 43 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 132 mm
Seatpost Diameter - 26.8 mm
Wheel Size - 26"
Brake Fixing - Cantilever / V-Brake
Bottom Bracket Thread - English/British/ISO Thread
Shifter Fittings - N/A
Headtube Internal Diameter - 33.6 mm
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Seat Tube (ctc) - we measure from the centre of the bottom bracket shell up to the centre line of the top tube to give a consistent measurement regardless of frame design (ctc means centre to centre).
Top Tube (ctc) - this is measured from the centre of the head tube to the centre of the seat tube, along the centre of the top tube.
Chainstay Length - measured from the centre of the bottom bracket shell to the centre point of the rear dropout.
Wheelbase - measured from the centre of the front fork dropout to the centre point of the rear dropout.
Front & Rear Spacing - measured from the inside of one dropout to the other. The dropouts on steel frames can be stretched or squeezed a few mm but it's always best to avoid this if possible, aluminium or carbon frames should never be stretched.
Raleigh 501 Vintage Quill Road Pedals
$72.00
✓ Original pedals - produced in the 1970s
✓ Suitable for historic cycling events such as L'Eroica
✓ Professionally checked & cleaned
✓ Worldwide shipping
Raleigh 501 pedals, hailing from Great Britain and in production during the 1970s. Made from steel and weighing in at 393 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica, Anjou Velo, Velo Retro or another similar vintage cycling event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong pedals!
The pedals have been carefully cleaned, thoroughly checked by one of our mechanics and graded as good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Bearing/Race Condition - OK
Condition Notes - Damage to cage plate on right hand pedal
Production Era - 1970s
Country - British
Material - Steel
Weight - 393 g
Stock Code - U-PD67V
TECHNICAL INFO
Pedal Type - Quill Road
Pedal Threads - Standard (9/16" x 20 TPI)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Pedal Type - this is just a guide to give you an idea of the pedal type, but any pedal can technically be used for any purpose. Track pedals are designed without the pointed 'quill' for safety though, so it's best to only use track pedals for this purpose. Most track pedals, along with quill & aero road pedals are designed to be used with toe clips & straps for best performance.
Pedal Threads - this must match the thread on your cranks. Sometimes it's stamped on the end of the crank arm, but most bikes use a standard thread of 9/16” x 20 tpi. The exceptions being older French bikes, bikes with cheaper one-piece type chainsets and Shimano’s Dyna Drive system (easily identifiable as the pedal holes are about an inch wide!).
Raleigh Upgrade Technology Titanium NOS Classic Crank Bolts
$42.00 $52.00
✓ Original parts - produced in the 1990s
✓ New old stock! Still unused after all these years
✓ Worldwide shipping
Raleigh Upgrade Technology crank bolts, hailing from Great Britain and in production during the 1990s (yet still new & unused after all this time!). Made from titanium and weighing in at 14 grams. A fine choice for keeping your classic bike authentic, but also great for any other compatible bike too.
OVERVIEW
Production Era - 1990s
Country - British
Material - Titanium
Weight - 14 g
Stock Code - D-CB9C
*New old stock items may have marks from storage over the years, and as we often have multiples they can vary from piece to piece, but they are always genuine new & unused items.
TECHNICAL INFO
Crank Bolt Type - 14 mm Hex
Crank Bolt Thread - M8 x 1 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Crank Bolt Type - 15 mm hex bolts used to be standard but some older TA, Stronglight and Zeus cranks used a larger 16 mm bolt, plus a few Japanese makers used a smaller 14 mm hex head. Allen key types were introduced in the 1980s and some are self-extracting, which means the crank removes itself when you undo the bolts.
Crank Bolt Thread - All square taper bottom brackets have a standard M8 x 1 mm thread, the only different thread types you’ll find on crank bolts are the much larger M12 & M15 bolts that are specifically for Octalink and ISIS bottom brackets.

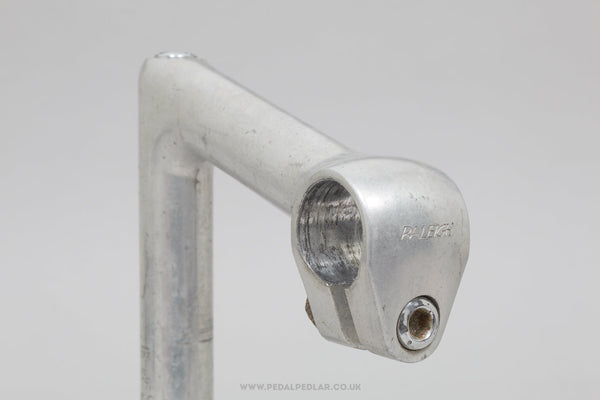

Raleigh Vintage 100 mm 1" Quill Stem
$39.00
✓ Original part - in production from the 1970s to the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Professionally checked & cleaned
✓ Worldwide shipping
Raleigh stem, hailing from Great Britain and in production from the 1970s to the 1980s. Made from aluminium/steel and weighing in at 348 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or a similar vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong stem!
The stem's been carefully cleaned, thoroughly checked by one of our mechanics and graded as good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1970s & 1980s
Country - British
Material - Aluminium/Steel
Weight - 348 g
Stock Code - U-ST116V
TECHNICAL INFO
Extension Length (ctc) - 100 mm
Quill Size - 1"
Steerer Size (ID) - 22.2 mm (Standard)
Total Shaft Height - 160 mm
Clamp Size - 25.4 mm
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Extension Length (ctc) - this is measured from the centre of the handlebar clamp to the centre of the shaft, to the point where the stem bolt passes through. We always take this measurement in a straight line through middle of the extension, not along the top.
Quill Size - the most common size for classic and vintage road bikes is 1", this should be the same as the outside diameter of your fork's steerer column. Oversized steerers found on mountain bikes and later road bikes will be either 1 1/8" or 1 1/4".
Steerer Size (ID) - this is the most important measurement when checking the stem fits your bike. This should match the measurement of the inside of your fork's steerer column, where the stem will be inserted. The standard size for road quill stems was 22.2 mm, or 22.0 mm in France until the 1980s.
Total Shaft Height - measured from the top where the expander bolt head sits, to the bottom of the stem's shaft. To give you an idea of how high the stem can be set, there should be an absolute minimum of 50 mm inserted into the fork steerer, although most stems come with a 'minimum insertion line' to help with this.
Clamp Size - this should match the outside diameter of your handlebars and should be as close as possible to ensure a good and safe fit.
Raleigh Vintage 15-20 mm Hex Head Seatpost Binder Bolt
$46.00
✓ Original part - in production from the 1970s to the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Checked & cleaned
✓ Worldwide shipping
Raleigh seatpost binder bolt, hailing from Great Britain and in production from the 1970s to the 1980s. Made from steel and weighing in at 19 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or any other vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong seatpost binder bolt!
The seatpost binder bolt's been cleaned, checked and graded as mint condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1970s & 1980s
Country - British
Material - Steel
Weight - 19 g
Stock Code - U-SBB8V
TECHNICAL INFO
Clamp Opening (Min-Max) - 15-20 mm
Outer Diameter - 8 mm
Bolt Fixing Type - Hex Head (Both Sides)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Clamp Opening - the minimum and maximum distance between the inside of the nut and bolt heads. The minimum is measured with the bolt tightened as much as possible (for hex head types this may mean the bolt end will stick quite far out of the nut). For the maximum opening we ensure 5-6 mm of thread remainis in the nut for a secure fixing.
Outer Diameter - the part that goes through the frame, most steel frames will take an 8 mm bolt whereas early lugged aluminium frames often have a larger hole that takes a 10 mm bolt diameter.
Bolt Fixing Type - Some binder bolts have knurled parts that grip the inside of the bolt hole, some have a small notch locator (a "key" that lines up with a cut-out in the frame if yours has one), others have tightening mechanism on both the nut and bolt to secure the seatpost in the frame.

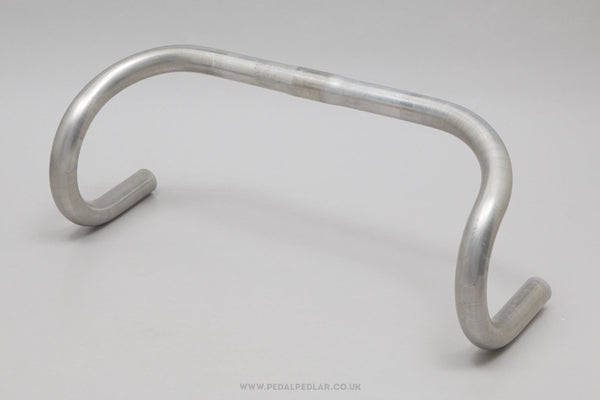

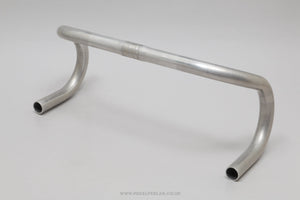

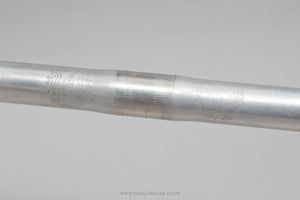

Raleigh Vintage 39 cm Drop Handlebars
$59.00
✓ Original bars - produced in the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Checked, cleaned & tape residue removed
✓ Worldwide shipping
Raleigh drop handlebars, hailing from Great Britain and in production during the 1980s. Made from aluminium and weighing in at 261 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or a similar vintage event, these are fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong bars!
The bars have been checked by one of our mechanics, handlebar tape residue removed and graded as good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1980s
Country - British
Material - Aluminium
Weight - 261 g
Stock Code - U-HB93V
TECHNICAL INFO
Width (ctc) - 39 cm
Shape - Classic
Clamp Size - 25.4 mm
Drop (ctc) - 148 mm
Reach (ctc) - 99 mm
Cable Groove - None
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
Raleigh Vintage Bolt-On Under Bottom Bracket Gear Cable Guide
$17.00
✓ Original part - in production from the 1980s to the 1990s
✓ Suitable for historic cycling events such as L'Eroica
✓ Checked & cleaned
✓ Worldwide shipping
Raleigh under BB gear cable guide, hailing from Great Britain and in production from the 1980s to the 1990s. Made from plastic and weighing in at 2 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or any other vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong cable guide!
The cable guide has been cleaned, checked and graded as very good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1980s & 1990s
Country - British
Material - Plastic
Weight - 2 g
Stock Code - U-CGG-B6V
TECHNICAL INFO
Number of Cables - Double
BB Fixing Type - Bolt-On
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Number of Cables - the number of cables the guide is designed to accept.
Fixing Type - if your frame has a small threaded hole under the bottom bracket shell you need the bolt-on type, if the hole has no thread you require the push fit type with the same diameter as the hole in your frame. If you have no hole, unfrotunately your frame isn't designed for this type of guide.
