Gazelle
54cm Gazelle Race c.1968 Vintage Dutch Road Bike Frame
$580.00
✓ Original vintage frame - built in the 1960s
✓ Lightweight for the era - just 2.8 kg
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Gazelle are perhaps most famous today for producing workhorses, the type produced in the hundreds of millions every year in Dieren, the Netherlands. Back in the 1960s however they were a much different beast. After the introduction of their 'Special Racing Division' in the 1980s, they assembled a professional cycling team sponsored by Dutch Cigar makers, Willem II. The most successful rider in the Willem II-Gazelle team was undoubtedly Rik Van Looy, but also included greats such as Harn Ottenbros & Peter Post to name just a couple. Gazelle's greatest years were yet to come, their most famous race frame, the Champion Mondial had been introduced to the world by the mid 70s and many famous partnerships followed.
Before the Champion Mondial came the Gazelle 'Race'. Lesser known due to its scarcity but by no means less important. It was this model that Rik Van Looy & Harm Ottenbros spent the latter half of the 1960s racing on. Built from Reynold's all-conquering 531 tube set with hand-cut lugs and a race-bred geometry the Race was ahead of it's time. With ample clearance and the ability to add mudguards these frames can be built into a period correct team race bike or a really practical vintage rider.
This 1968 Gazelle Race looks like it could have been a team frame, with the lack of mudguard eyelets, Zeus dropouts and the same grey colour that was used by the Willem II team at the time. Still in great condition for the age this lovely little lightweight is ready to be put together and ridden again by its lucky new owner.
If you're taking part in L'Eroica or a similar vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Era - 1960s
Country - Dutch
Frame Material - Steel
Weight - 2.75 kg
Stock Code - U-F-R88V
SIZING
Size Guide* - Medium (Approx 32" Inside Leg)
Seat Tube (ctc) - 54 cm
Top Tube (ctc) - 56.5 cm
Head Tube - 113 mm
Chainstay Length - 43 cm
Wheelbase - 100 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 120 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.2 mm
Wheel Size - 700c/28"
Brake Fixing - External Hex Nut
Front Brake Drop - 49 mm
Rear Brake Drop - 63 mm
Bottom Bracket Thread - English/British/ISO Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 43 mm
Fork Crown Race - 26.4 mm (ISO)
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Seat Tube (ctc) - we measure from the centre of the bottom bracket shell up to the centre line of the top tube to give a consistent measurement regardless of frame design (ctc means centre to centre).
Top Tube (ctc) - this is measured from the centre of the head tube to the centre of the seat tube, along the centre of the top tube.
Chainstay Length - measured from the centre of the bottom bracket shell to the centre point of the rear dropout.
Wheelbase - measured from the centre of the front fork dropout to the centre point of the rear dropout.
Front & Rear Spacing - measured from the inside of one dropout to the other. The dropouts on steel frames can be stretched or squeezed a few mm but it's always best to avoid this if possible, aluminium or carbon frames should never be stretched.
Brake Drop - measured using wheels of the relevant size for the frame, as stated in the technical info section.
Headset Threads - although it's generally recommended to match threaded parts exactly, with headsets you can technically mix and match, unless you have French or the obscure old Raleigh threads, in which case you need to stick to that type.
Gazelle Mundialita NOS Vintage 700c/28" x 21.5 mm Road Tubular Tyre
$76.00 $84.00
✓ Original tyre - produced in the 1970s
✓ New old stock! Still unused after all these years
✓ Suitable for historic cycling events such as L'Eroica
✓ Worldwide shipping
Gazelle Mundialita tubular/sprint tyre, hailing from The Netherlands and in production during the 1970s (yet still new & unused after all this time!). Made from rubber and weighing in at 272 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica, Anjou Velo, Velo Retro or another similar vintage cycling event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong tyre!
NB: Most tubular tyres use lightweight latex tubes that lose air over the course of a few days so will need re-inflating regularly. If mounted in the photos this is for illustrative purpose only, any wheels or rims shown are not included.OVERVIEW
Production Era - 1970s
Country - Dutch
Material - Rubber
Weight - 272 g
Stock Code - D-TY-T21V
*New old stock items may have marks from storage over the years, and as we often have multiples they can vary from piece to piece, but they are always genuine new & unused items.
TECHNICAL INFO
Tubular Wheel Size* - 700c/28" (Standard/Full Size)
Width - 21.5 mm
Bike Type - Road
Valve Core - Fixed (Not Removable)
*See help section.
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Tubular Wheel Size - standard/full size tubulars only come in one wheel size, these are often referred to as 28" or 700c (sometimes even 27"). These are all the same size, the next size down is 26", so any wheel larger than 26" will take a standard/full size tubular.
Width - the width of the tyre as stated by the manufacturer (if present), if there are no markings we measure at the widest point when fully inflated. Depending on the manufacturer, the stated width can differ slightly from the actual width when measured, although usually this only minimal.
Bike Type - the type of bike the tyre was designed to be used on. Road tyres will generally be narrow with minimal tread whereas cyclocross tyres will be wider with a more pronounced tread pattern, and MTB tyres even more so.
Casing - the main structure of the tyre that surrounds the inner tube and provides the base for the rubber tread. Most tubulars have cotton casings but other materials are used such as nylon, kevlar or silk. We can’t always provide this information as it’s not always possible to know for sure.
TPI - stands for threads per inch and refers to the thread count of the casing, if known. A high thread count usually means a more supple and lighter tyre, this can be anything as high as 320 tpi.
Valve Core - some valve cores are removable allowing you to add sealant or valve extenders, if the valve cores are fixed this is not possible.
Gazelle Populair 320 Black/Skin Vintage 700c/28" x 23 mm Tubular Tyres
$84.00
✓ Original pair of tyres - in production from the 1970s to the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over
✓ Worldwide shipping
Gazelle Populair 320 tubular/sprint tyres, hailing from The Netherlands and in production from the 1970s to the 1980s. Made from rubber and weighing in at 660 grams (the weight and price displayed are for a pair of tyres). A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike.
If you're taking part in L'Eroica, Anjou Velo, Velo Retro or another similar vintage cycling event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong tyres!
The tyres have been checked for general wear, that they're holding air as expected and graded as good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.NB: Most tubular tyres use lightweight latex tubes that lose air over the course of a few days so will need re-inflating regularly. If mounted in the photos this is for illustrative purpose only, any wheels or rims shown are not included.
OVERVIEW
Production Era - 1970s & 1980s
Country - Dutch
Material - Rubber
Weight - 660 g
Stock Code - U-TYP-T9V
TECHNICAL INFO
Tubular Wheel Size* - 700c/28" (Standard Tubular)*
Width - 23 mm
Bike Type - Road
TPI - 320
*See help section.
Please note: ’Skin’ in the title means there’s little or no coating on the tyre casing, resulting in a thin and supple wall that could be any number of light beige shades. ‘Gum’ means there’s a thick rubber coating, similar in colour to skin walls but much less supple. Please check the photos to get a good idea of the actual colour.
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Tubular Wheel Size - standard/full size tubulars only come in one wheel size, these are often referred to as 28" or 700c (sometimes even 27"). These are all the same size, the next size down is 26", so any wheels larger than 26" will take standard/full size tubulars.
Width - the width of the tyres as stated by the manufacturer (if present), if there are no markings we measure at the widest point when fully inflated. Depending on the manufacturer, the stated width can differ slightly from the actual width when measured, although usually this only minimal.
Bike Type - the type of bike the tyres were designed to be used on. Road tyres will generally be narrow with minimal tread whereas cyclocross tyres will be wider with a more pronounced tread pattern, and MTB tyres even more so.
Casing - the main structure of the tyres that surround the inner tube and provide the base for the rubber tread. Most tubulars have cotton casings but other materials are used such as nylon, kevlar or silk. We can’t always provide this information as it’s not always possible to know for sure.
TPI - stands for threads per inch and refers to the thread count of the casing, if known. A high thread count usually means more supple and lighter tyres, this can be anything as high as 320 tpi.
Valve Core - some valve cores are removable allowing you to add sealant or valve extenders, if the valve cores are fixed this is not possible.

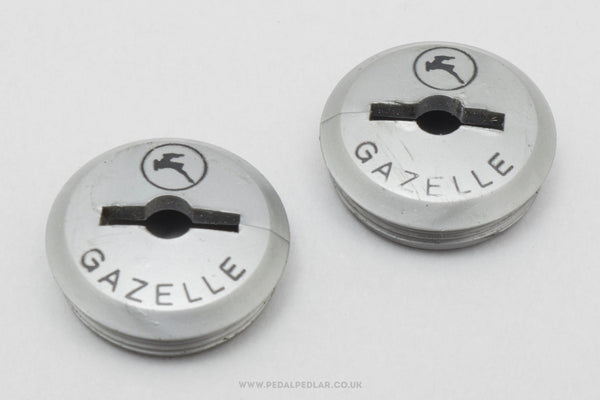

Gazelle Vintage Crank Dust Caps / Covers
$17.00
✓ Original parts - produced in the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Checked & cleaned
✓ Worldwide shipping
Gazelle crank dust caps, hailing from The Netherlands and in production during the 1980s. Made from plastic and weighing in at 2 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or a similar vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong dust covers!
The dust caps have been cleaned, checked and graded as very good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1980s
Country - Dutch
Material - Plastic
Weight - 2 g
Stock Code - U-CDC11V
TECHNICAL INFO
Crank Thread - 22 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Crank Thread - 22 mm is the standard thread for almost all cotterless cranks, the only exceptions are some Stronglight cranks made up until the early 1980s, and Specialites T.A. Campagnolo produced some self-extracting crank bolts with covers that had a reverse thread.
Gazelle Vuelta Black/Skin NOS Vintage 700 x 20c Tyre
$71.00
✓ Original tyre - produced in the 1980s
✓ New old stock! Still unused after all these years
✓ Suitable for historic cycling events such as L'Eroica
✓ Worldwide shipping
Gazelle Vuelta tyre, hailing from The Netherlands and in production during the 1980s (yet still new & unused after all this time!). Made from rubber and weighing in at 310 grams (the weight and price displayed are for one tyre, if we have more in stock you'll be able to add them to your basket). A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike.
If you're taking part in L'Eroica, Anjou Velo, Velo Retro or another similar vintage cycling event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong tyre!
NB: If mounted in the photos this is for illustrative purpose only, any wheels or rims shown are not included.OVERVIEW
Condition Notes - Sidewalls are a little dry
Production Era - 1980s
Country - Dutch
Material - Rubber
Weight - 310 g
Stock Code - D-TY-R56V
*New old stock items may have marks from storage over the years, and as we often have multiples they can vary from piece to piece, but they are always genuine new & unused items.
TECHNICAL INFO
Size - 700 x 20c
Bike Type - Road
ISO Diameter - 622 mm (700c/28")
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Size - this is the manufacturer’s sizing and must match the size or your wheel. This can be confusing as tyres have had different sizing systems over the years, and there are many (sometimes conflicting) sizes available. For this reason it’s important to check the ISO diameter too for clarification, especially for 26” wheels.
Bike Type - the type of bike the tyre was designed to be used on. Road tyres will generally be narrow with minimal tread, touring tyres wider with a bit more grip in the tread, and cyclocross & MTB tyres wider still (especially the latter), with a much more pronounced tread pattern.
ISO Diameter - this relates to the diameter of the wheel rim at the point where the tyre is seated (bead seat diameter). This is a universal measurement, often displayed on tyres as 28-622 or similar, 28 referring to the tyre width and 622 being the ISO diameter in millimetres.
TPI - stands for threads per inch and refers to the thread count of the tyre casing. A high thread count usually means a more supple and lighter tyre, this can be anything as high as 320 tpi. We can’t always provide this information however, as it’s not always possible to know for sure.
Gazelle Vuelta Black/Skin NOS Vintage 700 x 20c Tyres
$149.00
✓ Original pair of tyres - produced in the 1980s
✓ New old stock! Still unused after all these years
✓ Suitable for historic cycling events such as L'Eroica
✓ Worldwide shipping
Gazelle Vuelta tyres, hailing from The Netherlands and in production during the 1980s (yet still new & unused after all this time!). Made from rubber and weighing in at 620 grams (the weight and price displayed are for a pair of tyres). A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike.
If you're taking part in L'Eroica, Anjou Velo, Velo Retro or another similar vintage cycling event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong tyres!
NB: If mounted in the photos this is for illustrative purpose only, any wheels or rims shown are not included.OVERVIEW
Production Era - 1980s
Country - Dutch
Material - Rubber
Weight - 620 g
Stock Code - D-TYP-R40V
*New old stock items may have marks from storage over the years, and as we often have multiples they can vary from piece to piece, but they are always genuine new & unused items.
TECHNICAL INFO
Size - 700 x 20c
Bike Type - Road
ISO Diameter - 622 mm (700c/28")
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Size - this is the manufacturer’s sizing and must match the size or your wheels. This can be confusing as tyres have had different sizing systems over the years, and there are many (sometimes conflicting) sizes available. For this reason it’s important to check the ISO diameter too for clarification, especially for 26” wheels.
Bike Type - the type of bike the tyres were designed to be used on. Road tyres will generally be narrow with minimal tread, touring tyres wider with a bit more grip in the tread, and cyclocross & MTB tyres wider still (especially the latter), with a much more pronounced tread pattern.
ISO Diameter - this relates to the diameter of the wheel rims at the point where the tyres are seated (bead seat diameter). This is a universal measurement, often displayed on tyres as 28-622 or similar, 28 referring to the tyre width and 622 being the ISO diameter in millimetres.
TPI - stands for threads per inch and refers to the thread count of the tyre casings. A high thread count usually means more supple and lighter tyres, this can be anything as high as 320 tpi. We can’t always provide this information however, as it’s not always possible to know for sure.
Gazelle Vuelta Black/Skin Vintage 700 x 20c Road Tyres
$116.00
✓ Original tyres - produced in the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over
✓ Worldwide shipping
Gazelle Vuelta tyres, hailing from The Netherlands and in production during the 1980s. Made from rubber and weighing in at 585 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica, Anjou Velo, Velo Retro or another similar vintage cycling event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong tyres!
The tyres have been thoroughly checked by one of our mechanics and graded as very good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1980s
Country - Dutch
Material - Rubber
Weight - 585 g
Stock Code - U-TYP-R19V
TECHNICAL INFO
Size - 700 x 20c
Bike Type - Road
ISO Diameter - 622 mm (700c/28")
Please note: ’Skin’ in the title means there’s little or no coating on the tyre casing, resulting in a thin and supple wall that could be any number of light beige shades. ‘Gum’ means there’s a thick rubber coating, similar in colour to skin walls but much less supple. Please check the photos to get a good idea of the actual colour.
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Size - this is the manufacturer’s sizing and must match the size or your wheels. This can be confusing as tyres have had different sizing systems over the years, and there are many (sometimes conflicting) sizes available. For this reason it’s important to check the ISO diameter too for clarification, especially for 26” wheels.
Bike Type - the type of bike the tyres were designed to be used on. Road tyres will generally be narrow with minimal tread, touring tyres wider with a bit more grip in the tread, and cyclocross & MTB tyres wider still (especially the latter), with a much more pronounced tread pattern.
ISO Diameter - this relates to the diameter of the wheel rims at the point where the tyres are seated (bead seat diameter). This is a universal measurement, often displayed on tyres as 28-622 or similar, 28 referring to the tyre width and 622 being the ISO diameter in millimetres.
TPI - stands for threads per inch and refers to the thread count of the tyre casing. A high thread count usually means a more supple and lighter tyre, this can be anything as high as 320 tpi. We can’t always provide this information however, as it’s not always possible to know for sure.
