Gipiemme

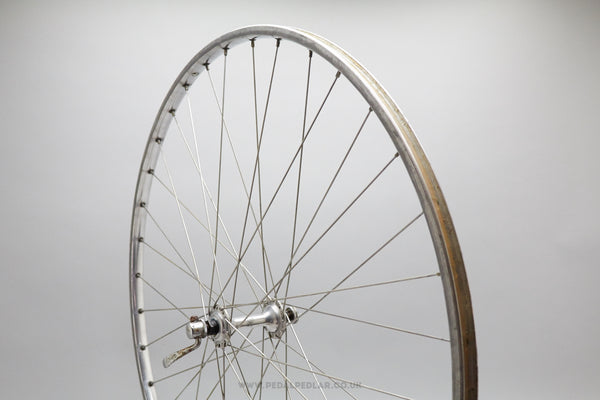

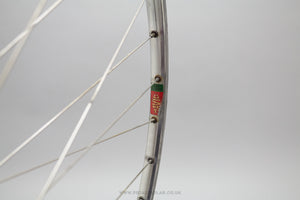

Gipiemme / Mavic Module E Vintage Clincher Front Wheel
£80.75 £95.00
All our wheels come professionally serviced, including tension check, truing & hub servicing where required. Please refer to the detailed photographs & information below for sizing & condition.
NB: Full size tubulars only come in one size. They are often referred to as 28", but some people call them 27" or 700c.
SIZING & CONDITION:
| Hub: | Gipiemme |
| Rim: | Mavic Module E |
| Wheel Size: | 700c |
| Hole Count: | 36h |
| Spacing: | 100mm |
| Bearing Condition: | Excellent |
| Rim Wear: | Medium |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details

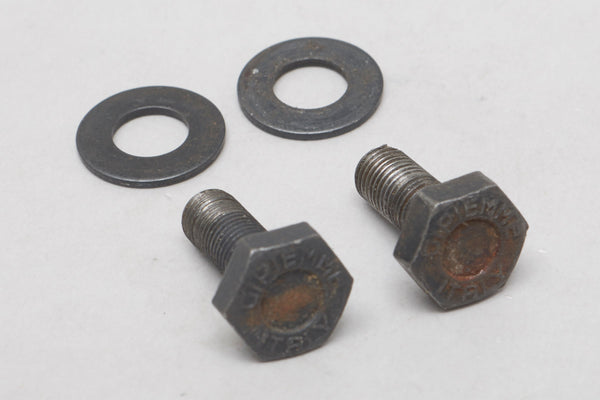

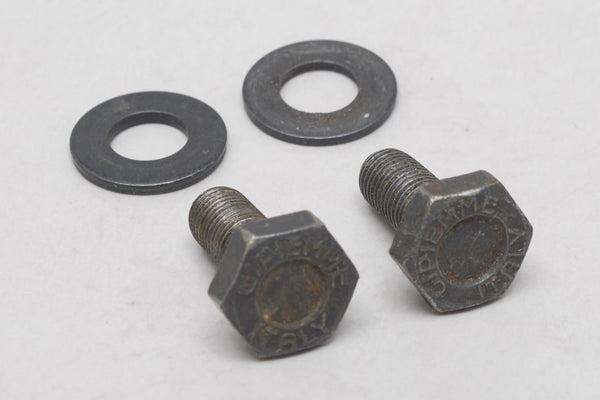

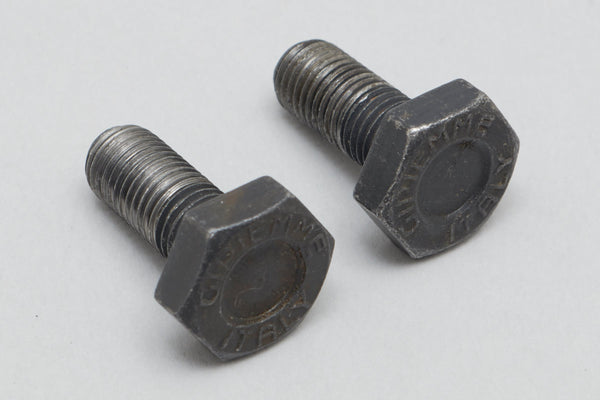

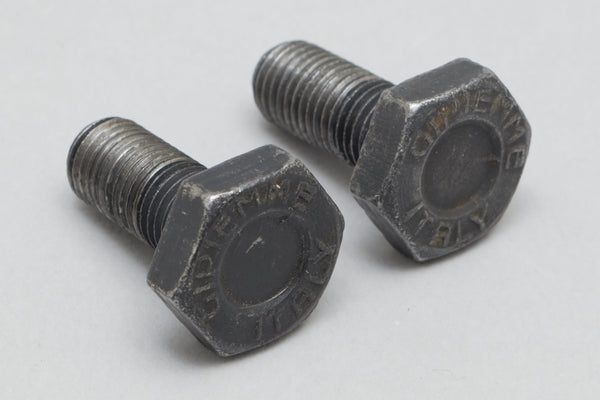

Gipiemme Crankset/Bottom Bracket Bolt
£6.80 £8.00
We have a huge range of spare parts in stock. Far too many to list, although we are trying to get some of the major spares on the site. If there is something specific your require, please do not hesitate to get in touch.
The price is for ONE crank fixing bolt & ONE washer as pictured. If you are looking for pairs, either purchase two or go back to the Crank Parts page.
TECHNICAL INFO & CONDITION:
| Fits: | Square Taper Bottom Bracket |
| Condition: | Very Good |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details

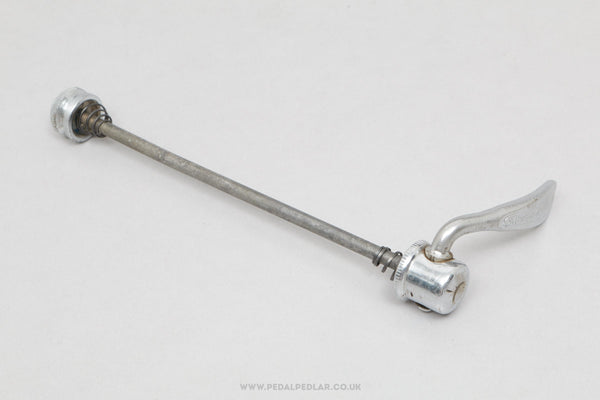

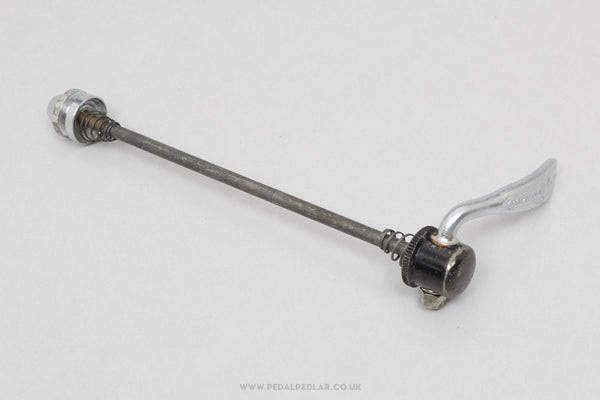

Gipiemme Crono Special Vintage Quick Release Rear Skewer
£18.00 £20.00
✓ Original skewer - produced in the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Checked & cleaned
✓ Worldwide shipping
Gipiemme Crono Special rear skewer, hailing from Italy and in production during the 1980s. Made from steel and weighing in at 90 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or any other vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong skewer!
The skewer's been cleaned, checked by one of our mechanics and graded as OK condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1980s
Country - Italian
Material - Steel
Weight - 90 g
Stock Code - U-SKW-R11V
TECHNICAL INFO
Skewer Type - Quick Release
Spacing* - 138 mm
Threaded Section - 24 mm
End Nut Length - 16 mm
*See help section.
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Skewer type - quick release skewers allow you to remove the wheel without any tools, whereas allen key and security skewers require a tool to allow the wheel to be removed.
*Spacing - this should be within a few milimetres of your frame's outer dropout spacing (measured from the outside where the skewers clamp down). The measurement provided was taken with the exiting hole of the end nut flush with the end of the skewer. There will be some wiggle room to allow a narrower or wider dropout spacing to fit, we've provided the threaded section and end nut measurements to give you an indication of how much.
Threaded section - the amount of thread on the skewers for the end nut to be threaded onto.
End nut length - the total length of the nut from end to end.

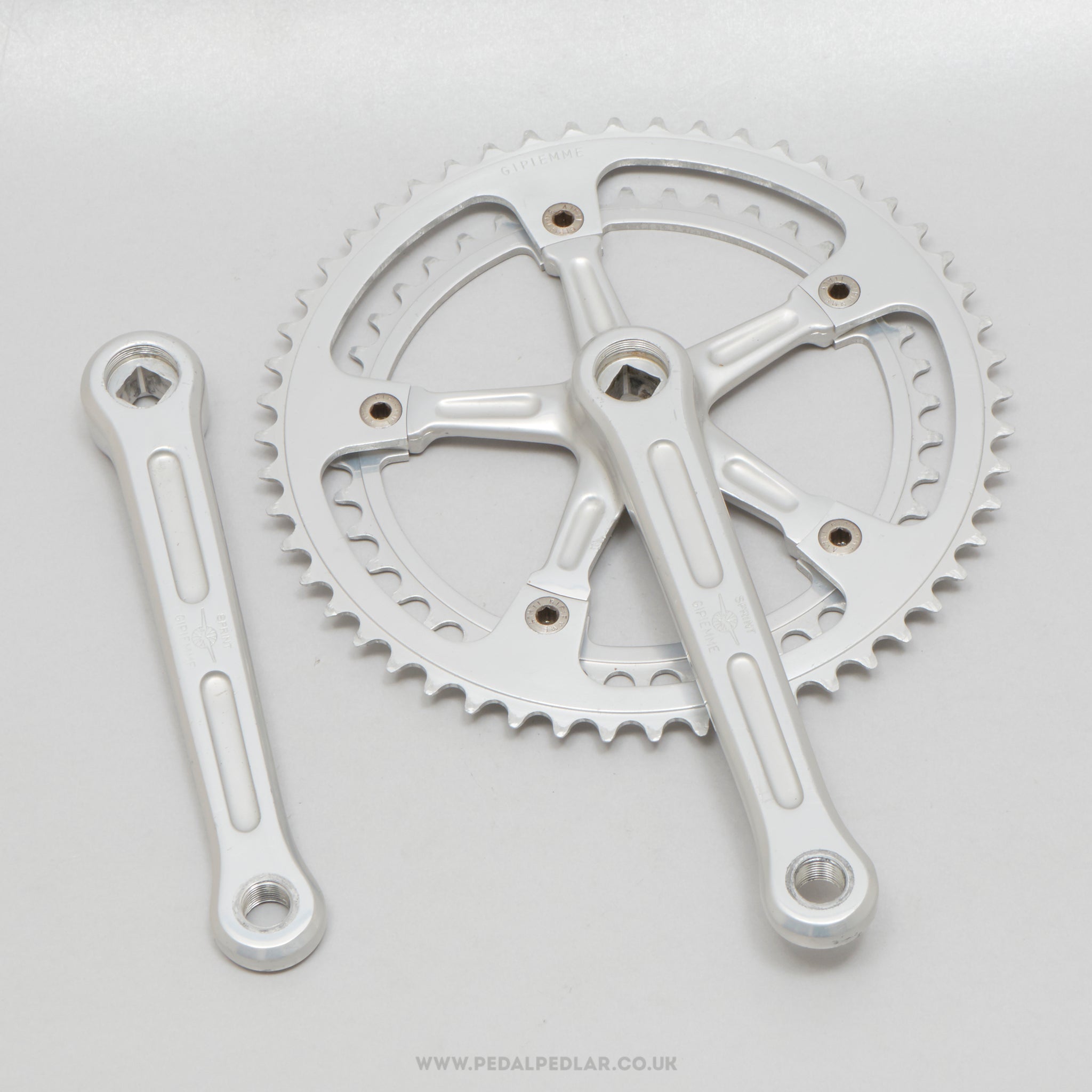

Gipiemme Dual Sprint Vintage Chainset
£76.50 £85.00
✓ Original part - produced in the 1970s
✓ Lightweight for the era - just 662 grams
✓ Suitable for historic cycling events such as L'Eroica
✓ Professionally checked & cleaned
✓ Worldwide shipping
Gipiemme Dual Sprint chainset, hailing from Italy and in production during the 1970s. Made from aluminium and weighing in at 662 grams - pretty lightweight for a chainset at that time. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or a similar vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong chainset!
The chainset's been carefully cleaned, thoroughly checked by one of our mechanics and graded as very good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Chainring Condition - Very Good
Production Era - 1970s
Country - Italian
Material - Aluminium
Weight - 662 g
Stock Code- U-CS30V
TECHNICAL INFO
Chainring Count - Double
Tooth Count - 53 / 42
Chain Width - 3/32"
BCD - 144 BCD
Intended Speed* - 5 Speed, 6 Speed
Crank Length - 170 mm
Pedal Threads - Standard (9/16" x 20 TPI)
Bottom Bracket Type - Square Taper
*See help section.
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 working days but larger items can often take a little longer to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay (even with the new post-Brexit trade deals, some countries may charge you import VAT & clearance fees so please bear this in mind when purchasing).
-
▼HELP SECTION
-
Chainring count - the number of chainrings on the chainset. Fixed gear track bikes, single-speeds and some geared bikes use a single chainring, road bikes commonly use a double (two rings) and most touring bikes and mountain bikes will use a triple chainset (three rings).
Tooth count - the number of teeth on the chainring(s), the higher the number the harder the gear.
Chain width - this is only relevant for chainsets with a single chainring - if this is ⅛” then you must use a ⅛” chain. All double and triple (and some single) ring chainsets will use a standard 3/32” chain.
BCD - stands for Bolt Circle Diameter (sometimes referred to as PCD - Pitch Circle Diameter) and is only really needed when changing chainrings. To calculate the BCD, measure the distance in millimeters from the centre of any chainring bolt to the centre of an adjacent one and multiply it by 1.709 (you’ll likely need to round the resulting number up or down a little to get your BCD measurement).
*Intended speed - the number of cogs at the back the chainset was designed to be used with. We refer to it as ‘intended’ speed as most double and triple chainsets will actually work with different speeds than originally intended, but the further away you get from the intended speed the more likely you are to experience minor setup issues. The exception being some chainsets intended for 10 speed use or higher, with these it’s better to stick to the intended speed.
Crank length - this is measured from the absolute centre of the bottom bracket hole to the centre of the hole for the pedal.
Pedal threads - the pattern of the thread that your pedals screw into, this is usually stamped on the pedals themselves and most bikes use a standard thread of 9/16” x 20 tpi. The exceptions being older French bikes, bikes with cheaper one-piece type chainsets and Shimano’s Dyna Drive system (easily identifiable as the pedal holes are about an inch wide!).
Bottom bracket type - ‘square taper’, as the name suggests have a square shaped axle that slots into the chainset and ‘cottered’ axles are round and secured by pins - pretty much every bike up until the 1990s would use one of these, cottered being the much earlier system. Since then, different manufacturers have introduced their own systems that are not interchangeable so you must use a chainset that matches.
Gipiemme Sprint NOS Vintage Bottom Bracket
£106.25 £125.00
Please refer to the table below & the detailed photos for technical info & condition.
TECHNICAL INFO & CONDITION
| Threading: |
British (1.37 x 24 tpi)
|
| Axle Length: | 112mm |
| Axle Taper: |
ISO
|
| Bearing/Race Condiiton: |
New Old Stock
|
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details
Gipiemme Sprint Vintage Quick Release Rear Skewer
£20.25 £22.50
✓ Original skewer - produced in the 1980s
✓ Suitable for historic cycling events such as L'Eroica
✓ Checked & cleaned
✓ Worldwide shipping
Gipiemme Sprint rear skewer, hailing from Italy and in production during the 1980s. Made from steel and weighing in at 89 grams. A fine choice for keeping your vintage bike authentic, but also great for any other compatible bike too.
If you're taking part in L'Eroica or any other vintage event, this is fully compliant - so rest assured, the pre-1987 police won't lock you up for having the wrong skewer!
The skewer's been cleaned, checked by one of our mechanics and graded as good condition, but do take a good look at the detailed photos so you can see the cosmetic condition before you buy.OVERVIEW
Production Era - 1980s
Country - Italian
Material - Steel
Weight - 89 g
Stock Code - U-SKW-R12V
TECHNICAL INFO
Skewer Type - Quick Release
Spacing* - 141 mm
Threaded Section - 22 mm
End Nut Length - 15 mm
*See help section.
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
-
▼HELP SECTION
-
Skewer type - quick release skewers allow you to remove the wheel without any tools, whereas allen key and security skewers require a tool to allow the wheel to be removed.
*Spacing - this should be within a few milimetres of your frame's outer dropout spacing (measured from the outside where the skewers clamp down). The measurement provided was taken with the exiting hole of the end nut flush with the end of the skewer. There will be some wiggle room to allow a narrower or wider dropout spacing to fit, we've provided the threaded section and end nut measurements to give you an indication of how much.
Threaded section - the amount of thread on the skewers for the end nut to be threaded onto.
End nut length - the total length of the nut from end to end.
