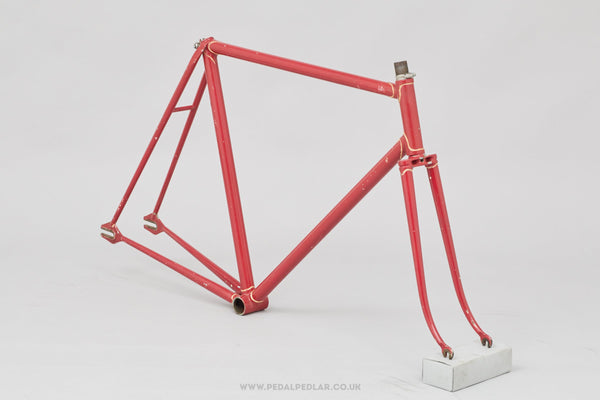

54cm Unknown Vintage Track Bike Frame
$378.00
✓ Original vintage frame - built in the 1960s/70s
✓ Lightweight for the era - just 2.8 kg
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
This unknown steel track frame has a number of quality features and probably dates from the 1960s or 1970s. Though there are no identifying marks or stamps, the five digit frame number implies it was built by a small volume builder and the fork dropouts are by Simplex, so perhaps pointing to a French or British builder. Regardless of where it was made, and by whom, the frame is very well put together with lovely long point lugs, a Fischer 'twin plate' fork crown and heavy duty rear dropouts. The fork has been drilled for a brake but the rear has not.
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Condition Notes - Fork brake hole is slightly off-centre
Era - 1960s/1970s
Frame Material - Steel
Weight - 2.79 kg
Stock Code - U-F-T2V
SIZING
Size Guide* - Medium (Approx 32" Inside Leg)
Seat Tube (ctc) - 54 cm
Top Tube (ctc) - 57 cm
Head Tube - 140 mm
Chainstay Length - 41.5 cm
Wheelbase - 101 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 115 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.2 mm
Wheel Size - 700c/28"
Brake Fixing - External Hex Nut
Brake Drop - 47 mm
Bottom Bracket Thread - English/British/ISO Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 34 mm
Fork Crown Race - 27.0 mm (JIS)
Headtube Internal Diameter - 30 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
Barnas Vintage Short Sleeved Cycling Jersey Ladies
$20.00
Pre-washed vintage cycling jersey from days gone by.
All jerseys are sized to be a snug but not super-tight fit. We've also provided actual measurements of the garment when laid flat so you can compare against your favourite fitting jersey. Please make sure the length is long enough, as these are sized using the chest measurement, and sometimes mis-shaping can happen over the years.
The chest is measured across the front, from armpit to armpit at the seam. The length is measured down the back, from top of collar to bottom of hem.
| Size: |
Small (34 - 37" Chest)
|
|
| Material: | 100% Polyester | |
| Condition: |
Very Good
|
|
| SKU: | J216 | |
| Cm | Inches | |
| Pit to Pit (Laid Flat): | 41 | 16.0 |
| Length (Down Back): | 69 | 27.0 |
*Our model wears a size medium and is 182cm / 6" tall.
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details
NOS Plastic Bike Pump
$20.00
| Condition: | NOS-New Old Stock (Shop Related Storage Marks) |
| Material: | Plastic |
| Fit: | Peg |
| Type: | Schraeder |
| Compressed Length: | 39cm |
| Uncompressed Length: | 40.4cm |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details
Unbranded Vintage Alloy Pump
$32.00
| Condition: | Good |
| Material: | Alloy |
| Fit: | Peg |
| Type: | Schraeder |
| Compressed Length: | 38.5cm |
| Uncompressed Length: | 41cm |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details
Unbranded Vintage Bike Pump
$20.00
| Condition: | Good |
| Material: | Plastic |
| Fit: | Frame |
| Type: | Presta |
| Compressed Length: | 52.5cm |
| Uncompressed Length: | 54.5cm |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details
Unbranded Vintage Bike Pump
$11.00
| Condition: | Good but with Slight Bend |
| Material: | Plastic |
| Fit: | Peg |
| Type: | Schraeder/Presta |
| Compressed Length: | 38cm |
| Uncompressed Length: | 40cm |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details
Unknown Plastic Pedals
$20.00
TECHNICAL INFO & CONDITION
| Threading: | Standard ISO (9/16" x 20 TPI) |
| Bearing / Race Condition: | Good |
| Body Condition: | Good |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details

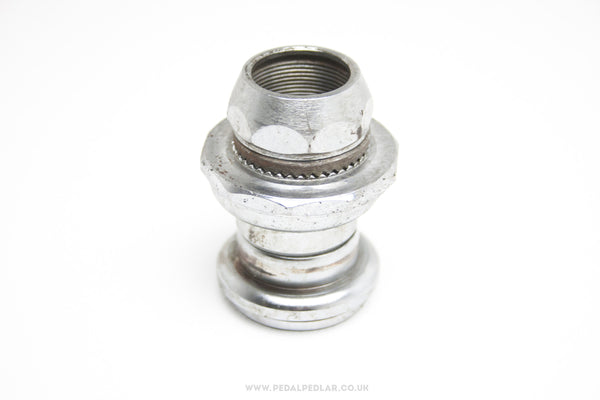

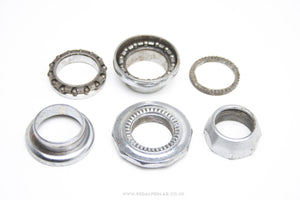

Unknown Steel Vintage 1" Threaded Headset
$39.00
Please refer to the table below & the detailed photos for technical info & condition.
If you need help determining the technical bits, such as headset threading or crown race diameter, Sheldon Brown has a very useful crib sheet here.
TECHNICAL INFO & CONDITION
| Stack Height: | 41mm |
| Threading: | Standard ISO (24 tpi - British/Italian/JIS) |
| Crown Race: | 26.4mm (Standard ISO) |
| Cosmetic Condition: | Good |
| Bearing/Surface Condition: | Very Good |
SHIPPING, TAXES & RETURNS
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
View full product details
Vintage Platform Pedals
$20.00
TECHNICAL INFO & CONDITION
| Threading: | Standard ISO (9/16" x 20 TPI) |
| Bearing / Race Condition: | OK |
