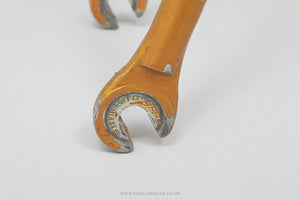

700c (28")

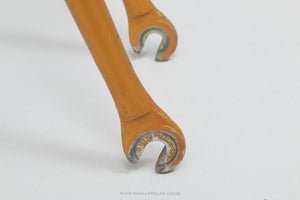

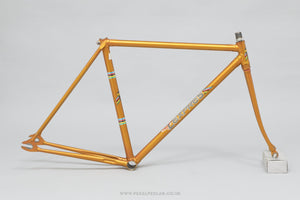

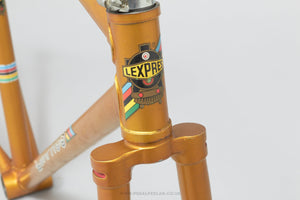

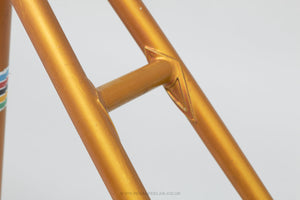

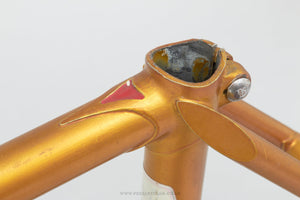

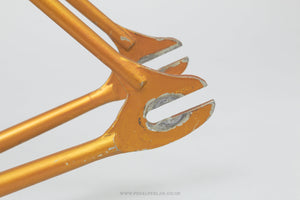

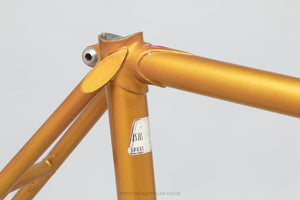

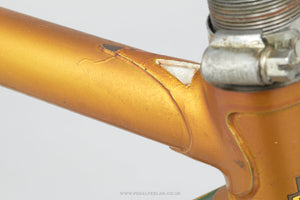

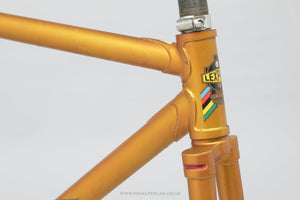

48.5cm Lexpres Vintage Belgian Track Bike Frame
$576.00
✓ Original vintage frame - built in the 1970s
✓ Lightweight for the era - just 2.6 kg
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping

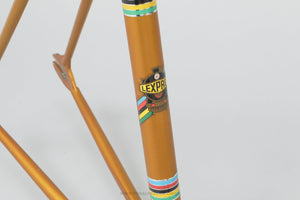

Lexpres was a small cycle shop in Antwerp, Belgium that built (or had built for them) bikes bearing their name in the late 1970s and early 1980s. There are very few examples of their bikes still in circulation, but it seems that track bikes were a speciality.
It is built from lightweight but strong Ishiwata 022 tubing with Shimano horizontal dropouts and Bocama lugs, and is not drilled for a brake. The frame is stamped '77' on the bottom bracket shell which given the frame details suggest this could well be the year of manufacture. With it's original paintwork and transfers this classic frameset is ready to be built up and put back to work on the boards.
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Era - 1970s
Country - Belgian
Frame Material - Steel
Tubing - Ishiwata 022
Weight - 2.555 kg
Stock Code - U-F-T5V
SIZING
Size Guide* - XS/Small (Approx 28 1/2" Inside Leg)
Seat Tube (ctc) - 48.5 cm
Top Tube (ctc) - 52 cm
Head Tube - 89 mm
Chainstay Length - 41 cm
Wheelbase - 95 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 120 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.0 mm
Wheel Size - 700c/28"
Bottom Bracket Thread - English/British/ISO Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 34 mm
Fork Crown Race - 26.4 mm (ISO)
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.

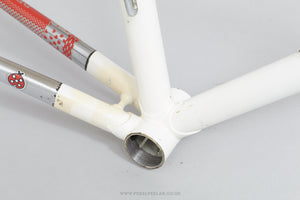

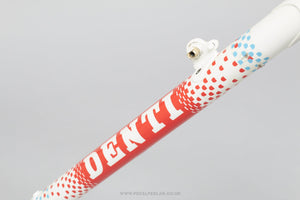

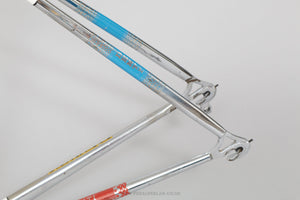

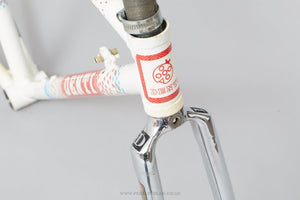

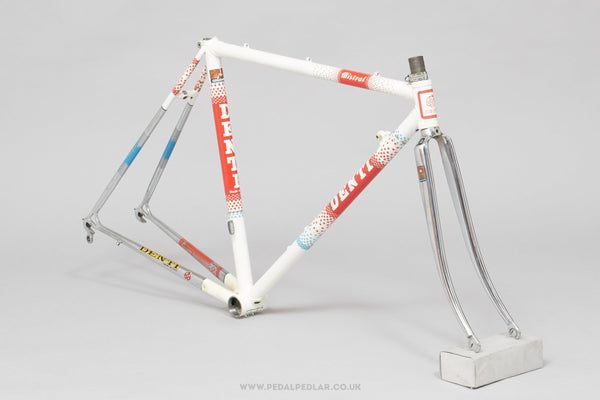

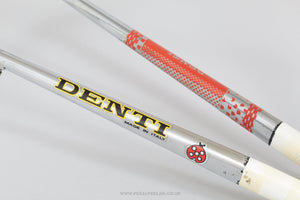

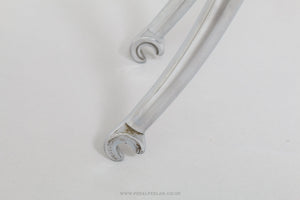

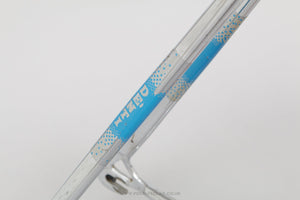

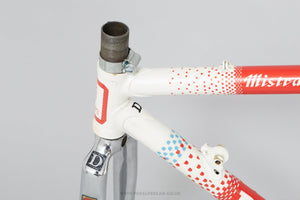

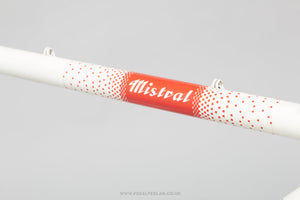

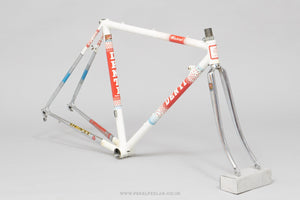

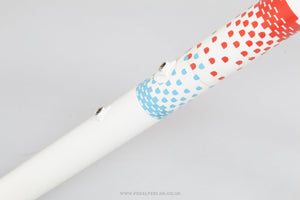

48cm Mino Denti Mistral Vintage Italian Road Bike Frame
$1,146.00
✓ Original vintage frame - built in the 1980s
✓ Super lightweight for the era - only 2.3 kg!
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Mino Denti was a great Italian racer who rode for some fantastic teams throughout the 1960s, he would probably be classed as a super-domestique these days as he was often found riding for the bigger names on his team. After his racing career ended in the late 1960s, Mino worked in the management side of professional cycling before taking the well-trodden path to starting his own bicycle business in 1979. Unlike most of his contemporaries, Mino decided he would do the building himself, and whilst there are very few Mino built frames out there, they're all beautifully finished and often sports unusual features such as hand-crimped tubes or bent seat tubes.
At just 48cm, this Mino Denti Mistral is just about as small a vintage road bike frame as you are likely to find. Built from super lightweight Columbus butted tubing and with aerodynamics in mind, it probably dates from the late 1980s. The shifter mounts are located on top of the downtube and the cables are routed into the downtube, then out again by the bottom bracket where they loop round on the outside of the frame to the derailleurs. The most interesting and unique feature here though has to be the Columbus Air flattened fork and chainstays for super aero appeal, and of course the short head tube promotes a streamlined head down/bum up position on the bike.
If you're taking part in L'Eroica or a similar vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Era - 1980s
Country - Italian
Frame Material - Steel

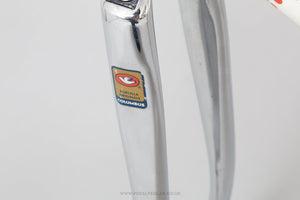

Tubing - Columbus (Air fork & chainstays)
Weight - 2.345 kg
Stock Code - U-F-R55V
SIZING
Size Guide* - XS/Small (Approx 28 1/2" Inside Leg)
Seat Tube (ctc) - 48 cm
Top Tube (ctc) - 53 cm
Head Tube - 78 mm
Chainstay Length - 40 cm
Wheelbase - 97 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 126 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.2 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 42 mm / 48 mm
Bottom Bracket Thread - Italian Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 42 mm
Fork Crown Race - 26.4 mm (ISO)
Shifter Fittings - Aero Braze-On
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
49.5cm Bianchi Pro Race Team Classic Italian Road Bike Frame
$442.00
✓ Original classic frame - built in the 2000s
✓ Lightweight for the era - just 2.6 kg
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Bianchi is the world's oldest bicycle manufacturer, starting in Italy in 1885 and still going strong today. Bianchi not only have a long history but an enviable race pedigree too having been ridden to great success by Fausto Coppi and Marco Pantani as well as many more, and they are still represented on the Pro Tour circuit. Often easy to spot thanks to their distinctive celeste paint, Bianchi have a special place in the heart of collectors and vintage bike enthusiasts the world over.
This early 2000s aluminium Bianchi frame and fork still shows the vestiges of an older time before Bianchi started building bikes in Taiwan and modern parts completely took over. Still made in Italy, the Pro Team Race is built from 7000 series alloy for the frame with a 6061 alloy fork, held together with a semi-integrated headset. The frame has braze on mounts for downtube shifters and is spaced for modern 10/11/12 speed groupsets, the fork steerer is standard 1 1/8" threadless.
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Era - 2000s
Country - Italian
Frame Material - Aluminium
Tubing - 7000 / 6061 Alloy
Weight - 2.575 kg
Stock Code - U-F-R72C
SIZING
Size Guide* - N/A
Seat Tube (ctc) - 49.5 cm
Top Tube (ctc) - 54 cm
Head Tube - 152 mm
Chainstay Length - 40.5 cm
Wheelbase - 97.5 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 132.5 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.2 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 43 mm / 40 mm
Bottom Bracket Thread - English/British/ISO Thread
Headset Thread - Threadless
Headset Stack Height - 64 mm of steerer above headset
Fork Crown Race - 30.0 mm
Shifter Fittings - Downtube Braze-On
Headtube Internal Diameter - Semi-integrated headset
Steerer Internal Diameter - Threadless
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.

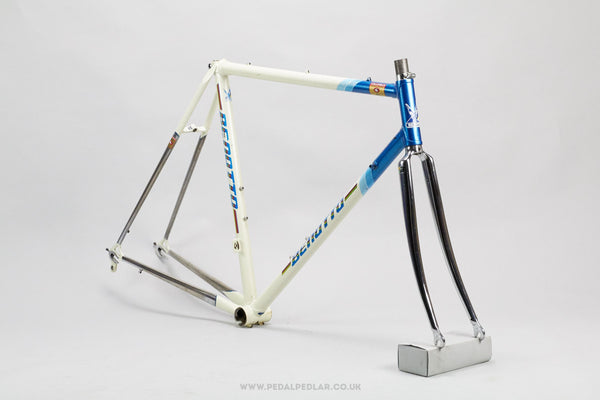

52.5cm Benotto Vintage Road Bike Frame
$628.00 $698.00
✓ Original vintage frame - built in the 1980s
✓ Lightweight for the era - just 2.5 kg
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Benotto have an enviable race pedigree having been ridden to World Championship, one day classic and stage race victories by such legends as Francesco Moser and Freddy Maertens. Like other top Italian marques a Benotto is often instantly recognisable by the colour, the ‘Champagne’ grey finish being used for their top bikes for many years. As well as producing finely made race bikes in Italy Benotto produced frames in Mexico and were extremely popular in South America. Benotto are also well known for their shiny bar tape which was available in a wide range of colours and was extremely popular through the 70s and 80s.
This high end frame set is more than likely one of the Italian built ones from a time when Benottos were producing a lot of their models in Mexico. The Columbus SLX tube set was the best available at the time and the frame has all the hallmarks of a top end race bike with the typically racy geometry Benotto are renowned for. The blue and white paint job with World Champion stripe decals is pure 80s and though the fork is we suspect a replacement the chrome matches the rest very nicely.
If you're taking part in L'Eroica or any other vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Condition Notes - One top tube cable guide damaged - see photos
Era - 1980s
Country - Italian
Frame Material - Steel
Tubing - Columbus SLX (Reynolds 531 Fork)
Weight - 2.521 kg
Stock Code - U-F-R4V
SIZING
Size Guide* - Small/Medium (Approx 31" Inside Leg)
Seat Tube (ctc) - 52.5 cm
Top Tube (ctc) - 53.5 cm
Head Tube - 123 mm
Chainstay Length - 40 cm
Wheelbase - 98 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 125 mm
Front Spacing - 101 mm
Seatpost Diameter - 27.0 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 45 mm
Bottom Bracket Thread - Italian Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 38 mm
Fork Crown Race - 26.4 mm (ISO)
Shifter Fittings - Downtube Braze-On
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 working days but larger items can often take a little longer to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
52cm Arrow Super Arrow Vintage Road Bike Frame
$421.00 $468.00
✓ Original vintage frame - built in the 1980s
✓ Lightweight for the era - just 2.5 kg
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Though we are not too sure who Arrow are, this pretty blue Arrow branded race frame is very nice indeed. The low weight is achieved by using top of the range Columbus SLX tubing, slender lugs and a racy Cinelli 'spoiler' bottom bracket shell. This compact little Italian road bike would look bellissima with a full Campagnolo build.
If you're taking part in L'Eroica or a similar vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Condition Notes - Some surface rust under bottom bracket shell where exposed through paint loss.
Era - 1980s
Country - Unknown
Frame Material - Steel
Tubing - Columbus SLX
Weight - 2.54 kg
Stock Code - U-F-R42V
SIZING
Size Guide* - Small/Medium (Approx 30 1/2" Inside Leg)
Seat Tube (ctc) - 52 cm
Top Tube (ctc) - 54 cm
Head Tube - 111 mm
Chainstay Length - 41 cm
Wheelbase - 98 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 126 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.0 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 38 / 40 mm
Bottom Bracket Thread - Italian Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 44 mm
Fork Crown Race - 26.4 mm (ISO)
Shifter Fittings - Downtube Braze-On
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.

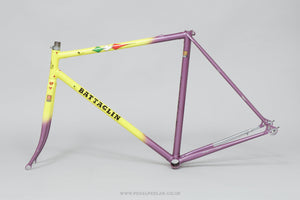

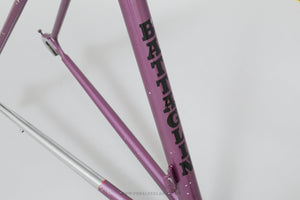

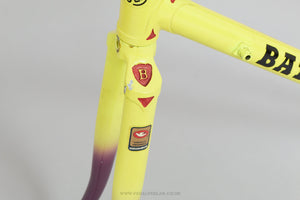

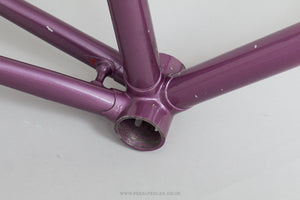

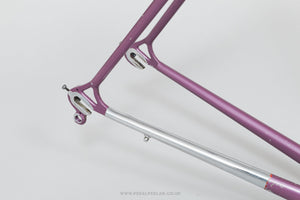

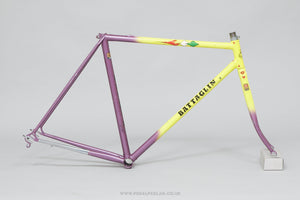

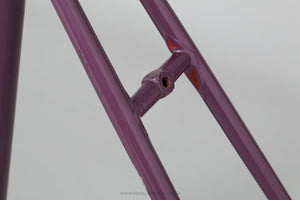

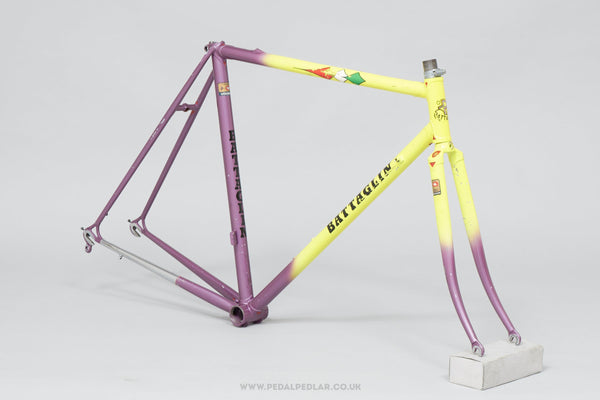

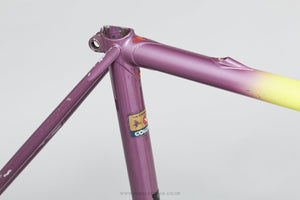

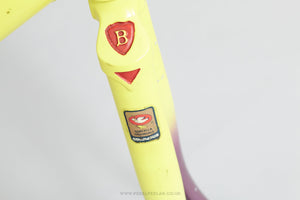

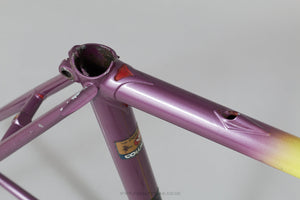

52cm Bottecchia Battaglin Branded Vintage Italian Road Bike Frame
$544.00
✓ Original vintage frame - built in the 1980s
✓ Super lightweight for the era - only 2.5 kg!
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Though branded with Battaglin decals from the late 1980s, this appears to be a curious mix of a Bottecchia built frame with a Berma pantographed fork. The frame lugs carry the distinctive Bottecchia cut out shape, and the internal cable routing is in a style they used too, whilst the fork carries the Berma 'B' on the fork crown. The purple and neon yellow colour scheme is reminiscent of the Team Jolly Componibili colours, who rode on Battaglins in the 80s and 90s. With Campagnolo dropouts front and rear and a slotted bottom bracket this is a well made frame, regardless of its slightly confused identity!
If you're taking part in L'Eroica or a similar vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Era - 1980s
Country - Italian
Frame Material - Steel
Tubing - Columbus Aelle
Weight - 2.46 kg
Stock Code - U-F-R64V
SIZING
Size Guide* - Small/Medium (Approx 30 1/2" Inside Leg)
Seat Tube (ctc) - 52 cm
Top Tube (ctc) - 53 cm
Head Tube - 114 mm
Chainstay Length - 40.5 cm
Wheelbase - 97.5 mm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 126 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.2 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 43 mm / 40 mm
Bottom Bracket Thread - Italian Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 33.0 mm
Fork Crown Race - 26.4 mm (ISO)
Shifter Fittings - Downtube Braze-On
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.
52cm Peugeot Triathlon (Specialized Branded) Vintage French Road Bike Frame
$378.00
✓ Original vintage frame - built in the 1980s
✓ Lightweight for the era - just 2.7 kg
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Though branded Specialized this is a refinished Peugeot Triathlon PGN10, built from Reynolds 501 with a neat quill seatpost set-up. Probably from 1986, this model came at a lower price point than the full 531C Triathlon Peugeot also offered, but still had the racy geometry and recessed allen key brakes. The quill seatpost does away with a seat post bolt on the frame itself and results in a very neatly finished frame design.
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Era - 1980s
Country - French
Frame Material - Steel
Weight - 2.7 kg
Stock Code - U-F-R38V
SIZING
Size Guide* - Small/Medium (Approx 30 1/2" Inside Leg)
Seat Tube (ctc) - 52 cm
Top Tube (ctc) - 53.5 cm
Head Tube - 122 mm
Chainstay Length - 41 cm
Wheelbase - 99 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 127 mm
Front Spacing - 101 mm
Seatpost Diameter - 26.4 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 45 mm
Bottom Bracket Thread - English/British/ISO Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 40 mm
Fork Crown Race - 26.4 mm (ISO)
Shifter Fittings - Downtube Braze-On
Headtube Internal Diameter - 30.1 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 days but larger items and orders placed before the weekend can take an extra day or two to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import fees to pay directly to the delivery company before receiving the order. Unfortunately we can’t advise on the exact costs as it varies from country to country, so please check your national rates before purchasing.

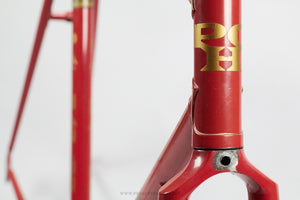

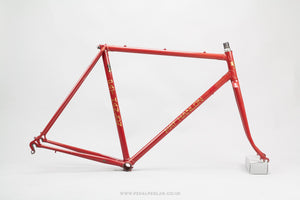

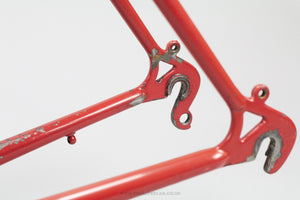

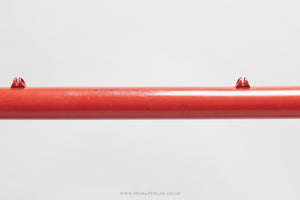

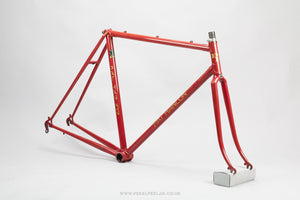

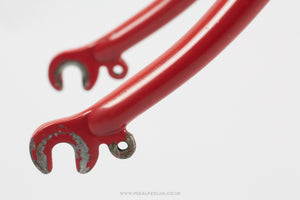

53.5cm Pat Hanlon Vintage Road Bike Frame
$468.00
✓ Original vintage frame - built in the 1970s
✓ Lightweight for the era - just 2.7 kg
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Famed first and foremost for her wheel-building, Pat Hanlon was an extraordinary woman in the predominantly man's world of post-war bike racing and building. Pat started her first shop just down the road from Pedal Pedlar HQ in Tottenham in 1957, continuing to build wheels for world champions and local racers alike, introducing a range of frames bearing her name in 1960 built by the legendary Vic Edwards. Later frames were also built by other well known London builder's Les Ephgrave and Tom Board. Those who are still lucky enough to own a pair of Pat's original wheels are no doubt carefully looking after them!
This frame has an interesting mix of features that make it hard to place time-wise. The Campagnolo 1060 semi-horizontal dropouts and clamp-on down tube shifter pip all point to late 60s/early 70s but the under bottom bracket cable routing and allen key brake fixings suggest later, likely the back end of the 1970s. Regardless, the lug work is very nicely done and the frame is nice and light, especially considering the clearance for wider tyres and mudguard eyelets.
If you're taking part in L'Eroica or any other vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Era - 1970s
Country - United Kingdom
Frame Material - Steel
Tubing - Reynolds 531
Weight - 2.685 kg
Stock Code - U-F-R13V
SIZING
Size Guide* - Small/Medium (Approx 31 1/2" Inside Leg)
Seat Tube (ctc) - 53.5 cm
Top Tube (ctc) - 55 cm
Head Tube - 128 mm
Chainstay Length - 42 cm
Wheelbase - 100 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 126 mm
Front Spacing - 100 mm
Seatpost Diameter - 27.0 mm
Wheel Size - 700c/28"
Brake Fixing - Recessed Allen Key
Brake Drop - 53 mm
Bottom Bracket Thread - English/British/ISO Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 39 mm
Fork Crown Race - 26.4 mm (ISO)
Shifter Fittings - Downtube Band-On
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 working days but larger items can often take a little longer to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).

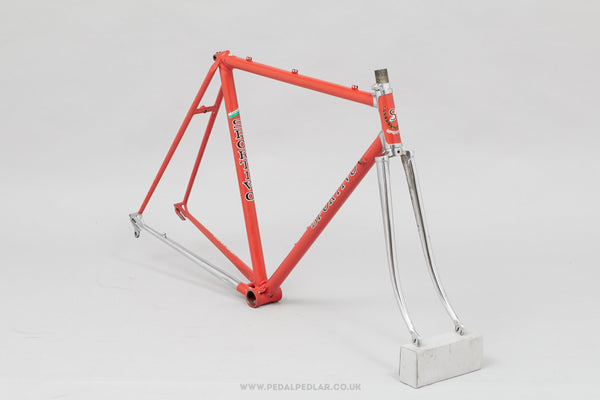

53cm Sportivo Vintage Road Bike Frame
$378.00
✓ Original vintage frame - built in the 1980s
✓ Lightweight for the era - just 2.8 kg
✓ Suitable for historic cycling events such as L'Eroica
✓ Thoroughly checked over & photographed in detail
✓ Worldwide shipping
Sportivo Bavikhove is a racing bike specialist shop in Belgium started by local former professional Lieven Malfiet. In the early 80s Sportivo began importing frames from Italy to brand as their own and the frame details from this bike suggest it is one of the earlier bikes they sold. With cut-out lugs, a slotted BB and Campagnolo droupouts this frame is well put together, the chromed fork and headtube lugs and drive side chainstay give it a classic look too.
If you're taking part in L'Eroica or any other vintage event, this frame is of the correct age, so you won't be disqualified for being a rule breaker!
The frame's been carefully checked by one of our mechanics to confirm the alignment's correct and there's no damage to the threads. If there are any minor issues worth noting we will do so in the overview section below. Please take a good look at the detailed photos so you can see the cosmetic condition of the frame before you buy.OVERVIEW
Condition Notes - Rear brake hole has been drilled to accept recessed allen key fixing
Era - 1980s
Country - Belgium
Frame Material - Steel
Weight - 2.79 kg
Stock Code - U-F-R26V
SIZING
Size Guide* - Small/Medium (Approx 31 1/2" Inside Leg)
Seat Tube (ctc) - 53 cm
Top Tube (ctc) - 54 cm
Head Tube - 114 mm
Chainstay Length - 43 cm
Wheelbase - 99 cm
*This is just a guide, not a guarantee the frame will fit as every rider is different. If you're unsure of your size we'd always recommend trying out a bike with similar frame dimensions first.
TECHNICAL INFO
Rear Spacing - 122 mm
Front Spacing - 101 mm
Seatpost Diameter - 27.0 mm
Wheel Size - 700c/28"
Brake Fixing - External Hex Nut
Brake Drop - 53 mm
Bottom Bracket Thread - Italian Thread
Headset Thread - Standard ISO (24 TPI - British/Italian)
Headset Stack Height - 40 mm
Fork Crown Race - 26.4 mm (ISO)
Shifter Fittings - Downtube Braze-On
Headtube Internal Diameter - 30.2 mm
Steerer Internal Diameter - 22.2 mm (Standard)
-
▼SHIPPING, TAXES & RETURNS
-
We've been safely sending orders around the world since 2010. There's a handy shipping calculator on the shopping cart page so you can see the cost of postage as soon as you've added it to your basket. Your order will be carefully packed and sent with tracking & insurance, we despatch most orders within 2-3 working days but larger items can often take a little longer to process.
We accept returns, please notify us within 14 days and ensure the item arrives back with us no later than 30 days after the order was received.
We don't charge VAT, however, if buying from outside of the UK please remember that there may be import duties to pay upon receipt (even with the new post-Brexit trade deals, some countries may still charge you import VAT & clearance fees, so please bear this in mind when purchasing).
